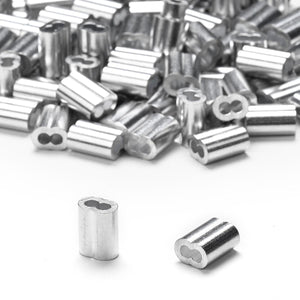

Yescom Wire Cable Aluminum Crimping Sleeve 100ct.

These Double-Barrel Wire Rope Crimping Sleeves deliver reliable termination and high holding power for cable assemblies. Available in 1/8" (3.18 mm) and 3/16" (4.8 mm), each 100-pack is ideal for deck railings, shade sails, trellises, and custom rigs. Choose 1/8" for standard cables like 1/8" 316 stainless steel wire ropes, or 3/16" for heavy-duty setups like 3/16" 7x19 wire ropes. For crimping and swaging only; not for dynamic lifting.

High Quality:

• Secure Double-Barrel Grip: The figure-8 dual-channel structure creates a snug, non-slip fit around wire cables, ensuring firm loop splices that won't pull through after proper crimping.
• Weatherproof Aluminum Alloy: Built from dense, high-grade aluminum to resist corrosion, rust, and outdoor elements, delivering long-term stability in harsh environments.
• Smooth, Crack-Free Swaging: Excellent material ductility allows effortless compression with standard hand swagers or hydraulic tools without splitting or cracking.
• Wide Structural & DIY Utility: Perfect for setting up cable railing systems, patio sun shades, clotheslines, string light guides, wire fences, and pet runs.
• Bulk Value Pack: Supplied in convenient 100-piece sets to ensure you have sufficient crimping hardware for multi-point cable connections and large-scale DIY tasks.

Product Details:

• Material: Aluminum Alloy
• Color: Silver

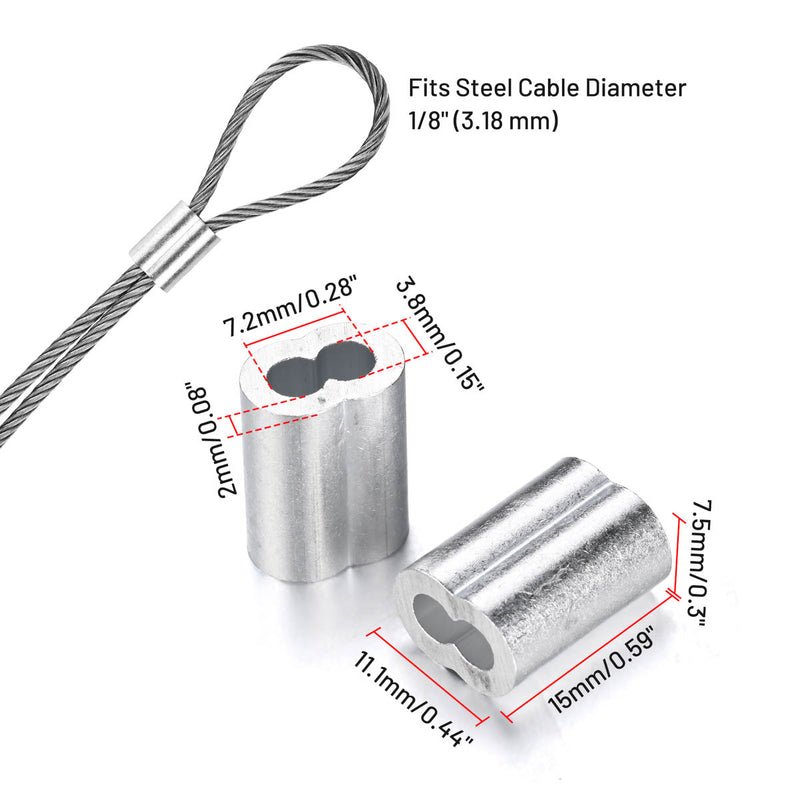

• 1/8" Option Specifications:
  • Compatible Cable / Wire Rope: 1/8" (3.18 mm) Diameter
  • Overall Dimensions (L x W x H): 19/32" x 7/16" x 19/64" (15 x 11.1 x 7.5 mm)
  • Inner Dimensions (W x H): 9/32" x 5/32" (7.2 x 3.8 mm)
  • Wall Thickness: 5/64" (2 mm)
  • Net Weight: 0.35 lb (0.16 kg) / 100 Pcs

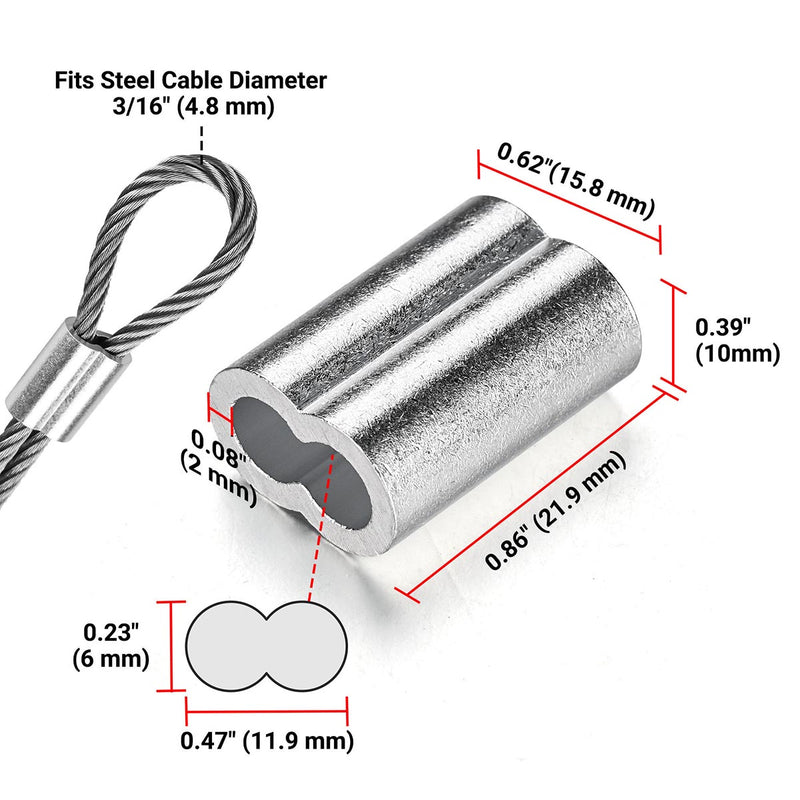

• 3/16" Option Specifications:
  • Compatible Cable / Wire Rope: 3/16" (4.8 mm) Diameter
  • Overall Dimensions (L x W x H): 55/64" x 5/8" x 25/64" (21.9 x 15.8 x 10 mm)
  • Inner Dimensions (W x H): 15/32" x 15/64" (11.9 x 6 mm)
  • Wall Thickness: 5/64" (2 mm)
  • Net Weight: 0.99 lb (0.45 kg) / 100 Pcs

Also In The Box:

• 100x Aluminum Wire Rope Crimping Sleeves (1/8" or 3/16", based on selected option)

Shipping Disclaimer: Due to the size and weight of this product, it may be shipped in multiple packages. Packages may be delivered separately by the carrier.
