Yescom Stainless Steel Eye Plate U Hooks 6ct.

Engineered for secure anchoring on walls, beams, and ceilings, these Stainless Steel Eye Plate U Hooks create a high-strength attachment point for shade sails, wire ropes, and hanging fixtures. Available in M8 (40x50mm) and M10 (48x60mm) size options, they offer dependable static load support for shade canopies, cable railings, and heavy storage setups—rated at 396 lbs for M8 or 617 lbs for M10. Depending on the size you choose, pair M8 plates with our 1/8" 316 stainless steel wire ropes or vinyl-coated cable assemblies, or step up to M10 for broader compatibility with both 1/8" and 3/16" cables (sold separately). Not for overhead lifting or life-safety applications.

High Quality:

• Heavy-Duty Load Support: Heavy-duty loop thickness combined with a wide 4-hole mounting base distributes weight evenly, supporting a reliable static capacity of 396 lbs (M8) or 617 lbs (M10).
• All-Weather 304 Stainless Steel: Solid 304 stainless steel construction offers excellent resistance to rust, corrosion, and weather exposure, ensuring long-lasting performance for both indoor and outdoor setups.
• Generous Inner Clearance: Wide inner loop opening (0.83" x 0.83" M8 / 1.02" x 1.02" M10) enables effortless connection with carabiners, turnbuckles, snap hooks, and looped wire cables without binding.
• Versatile Surface Mounting: Suitable for secure mounting into solid timber posts, wood studs, beams, brick, or concrete walls.
• Complete Ready-to-Install Kit: Includes 6 square eye plates along with 24 matching M5x40mm stainless screws and 24 expansion anchors for a complete, hassle-free installation.

Product Details:

• Material: 304 Stainless Steel
• Finish: Metallic Silver
• Screw Hole Diameter (d): 0.24" (6.2 mm)

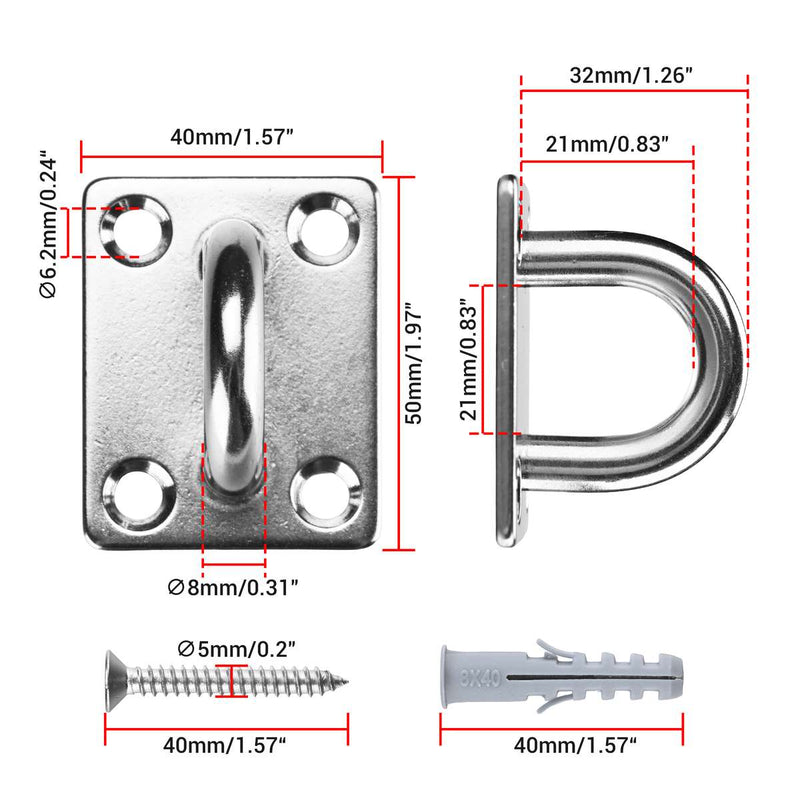

• M8 Option Specifications:
  • Product Type: M8 Eye Plate U Hook
  • Safe Working Load (Static): 396 lbs (180 kg)
  • Ring Diameter (D): 0.31" (8 mm)
  • Base Size (A x B): 1.57" x 1.97" (40 x 50 mm)
  • Inner Clearance (h x w): 0.83" x 0.83" (21 x 21 mm)
  • Total Height (H): 1.26" (32 mm)

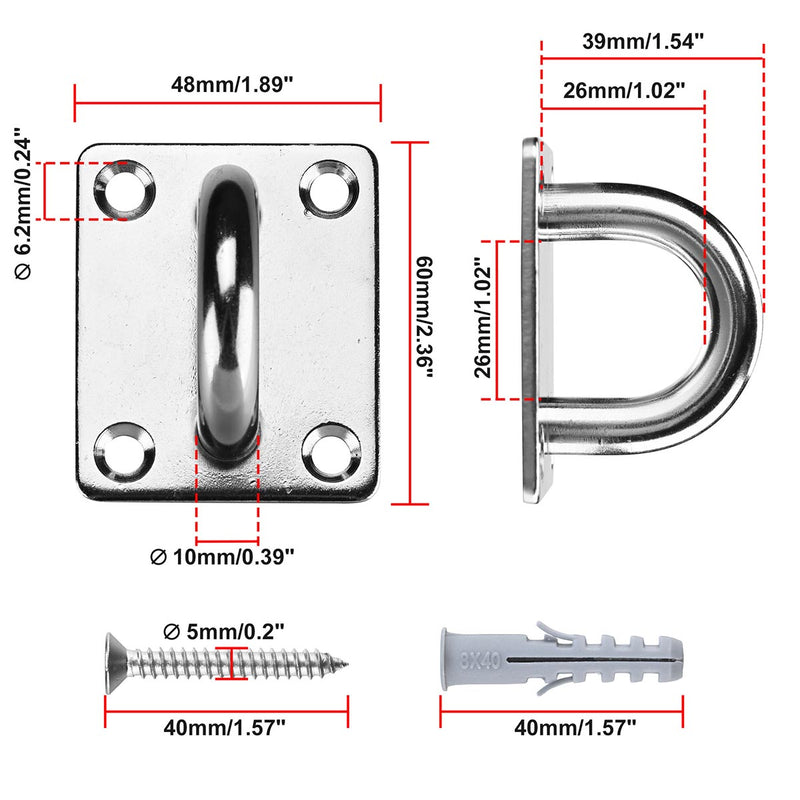

• M10 Option Specifications:
  • Product Type: M10 Square Pad Eye Hook / Eye Plate U Hook
  • Safe Working Load (Static): 617 lbs (280 kg)
  • Ring Diameter (D): 0.39" (10 mm)
  • Base Size (A x B): 1.89" x 2.36" (48 x 60 mm)
  • Inner Clearance (h x w): 1.02" x 1.02" (26 x 26 mm)
  • Total Height (H): 1.54" (39 mm)

Also In The Box:

• 6x Stainless Steel Eye Plates (M8 or M10, depending on selected size)
• 24x M5x40mm Stainless Steel Self-Tapping Screws
• 24x 40mm Grey Plastic Wall Anchors

Shipping Disclaimer: Due to the size and weight of this product, it may be shipped in multiple packages. Packages may be delivered separately by the carrier.
