Yescom Hydraulic Cable Terminal Wire Crimping Tool 10-Ton 9pcs

Out of stock

Frequently Bought Together

Total price:$ 65.78

This 10-ton hydraulic wire crimping tool which has 9 dies! With the powerful crimper, you could crimp wires and butt connectors easily. Much easier to use than a pair of hand crimpers.The crimper tool crimps AWG 12 to 2/0 size copper and aluminum wires, lugs and compressible battery terminal ends
Great for battery and welding cables, power wires and electrical cables etc.

High Quality:

  • Hydraulic wire crimper features 9 sets of dies for providing large crimping range from 4 to 70 square millimeters

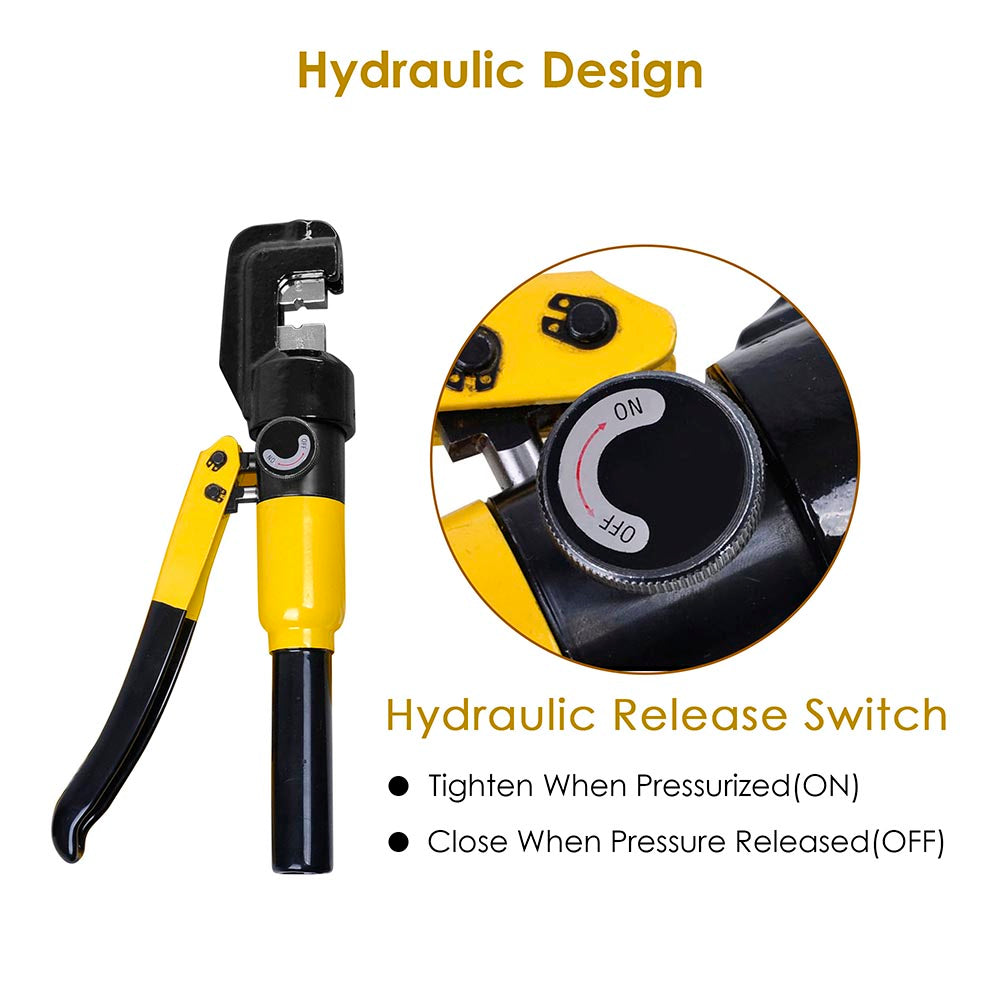

  • Hydraulic Design
    • Providing 10-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
    • Hydraulic crimper is much easier than using a hand crimping

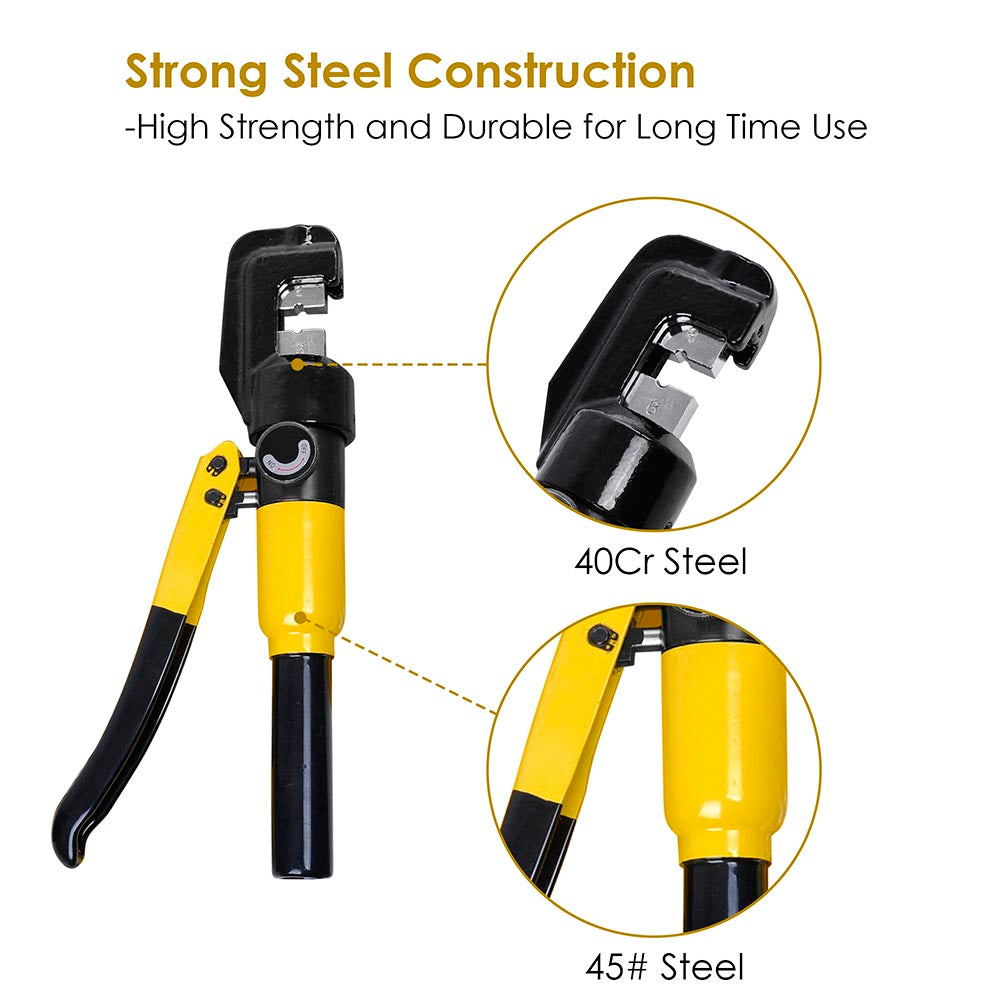

  • Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
  • Convenient & Portable

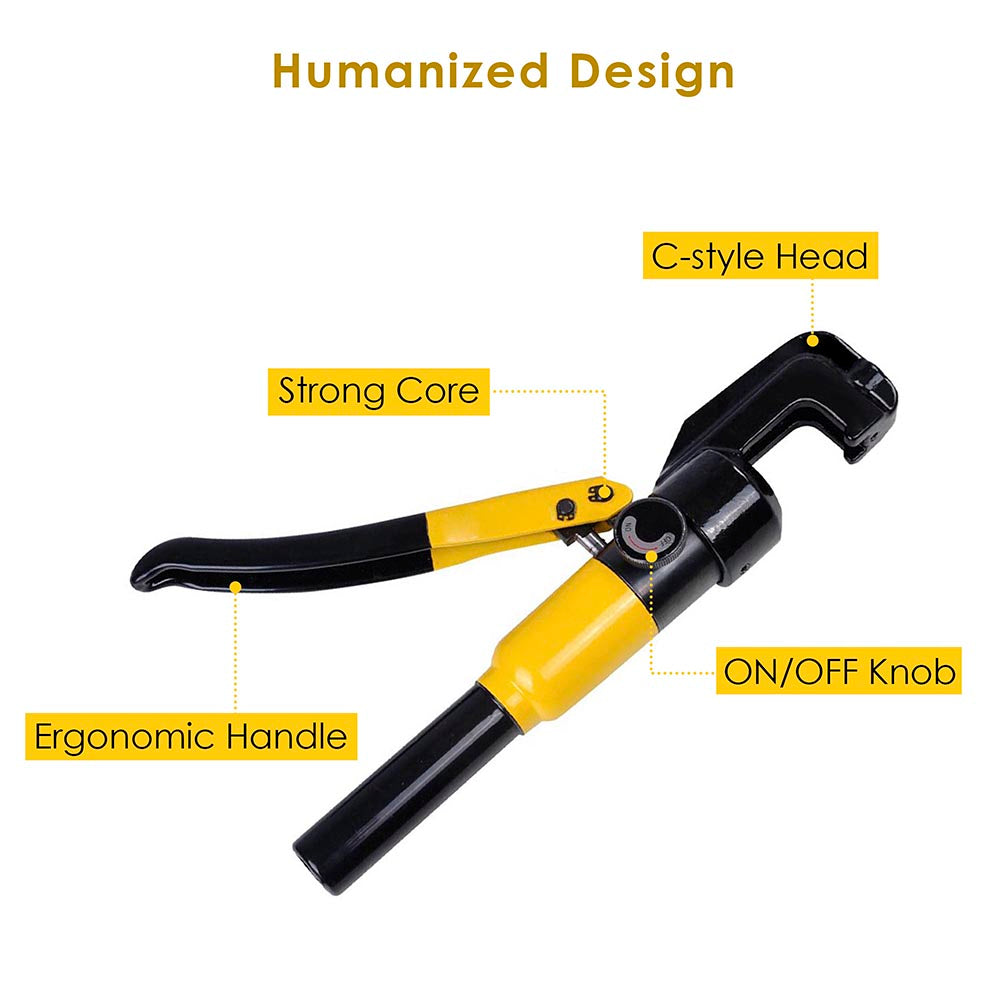

    • C-style head for easy changing the dies and fixing the wire in position
    • Long ergonomic handle for convenient and labor-saving operation

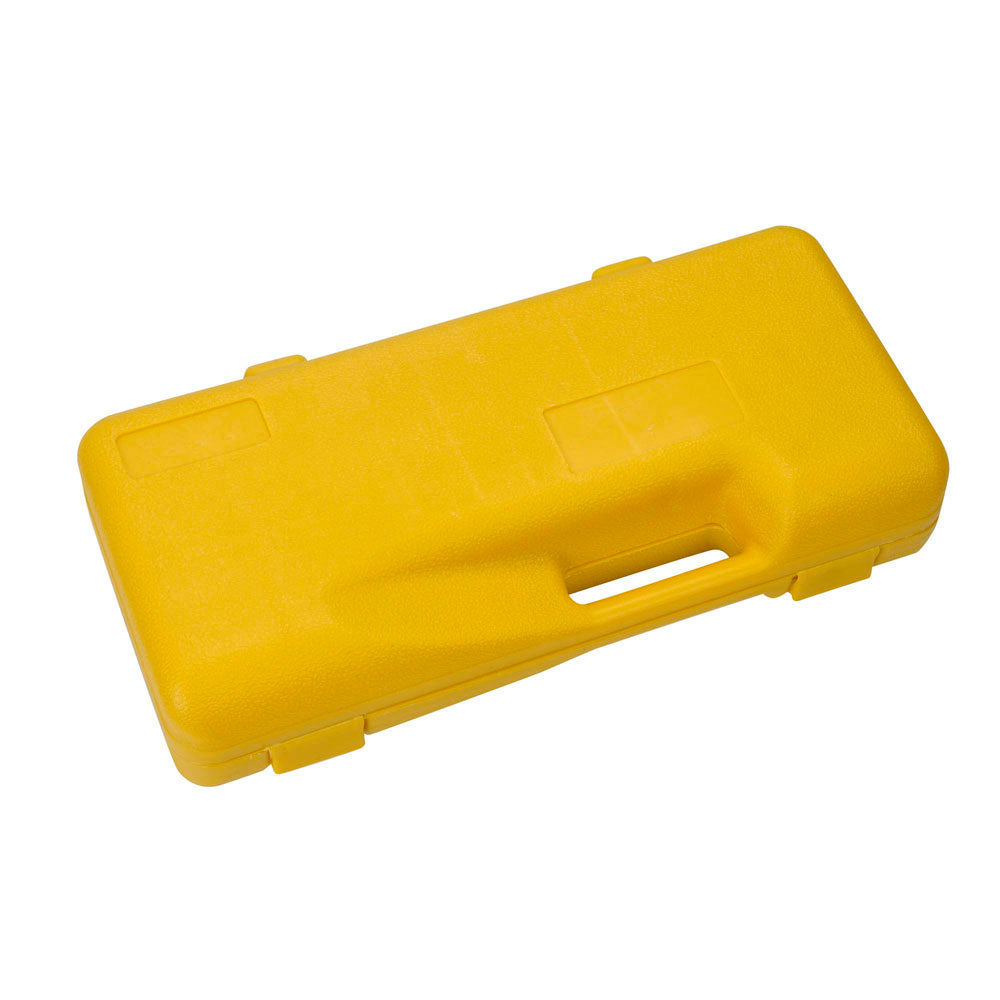

    • Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place

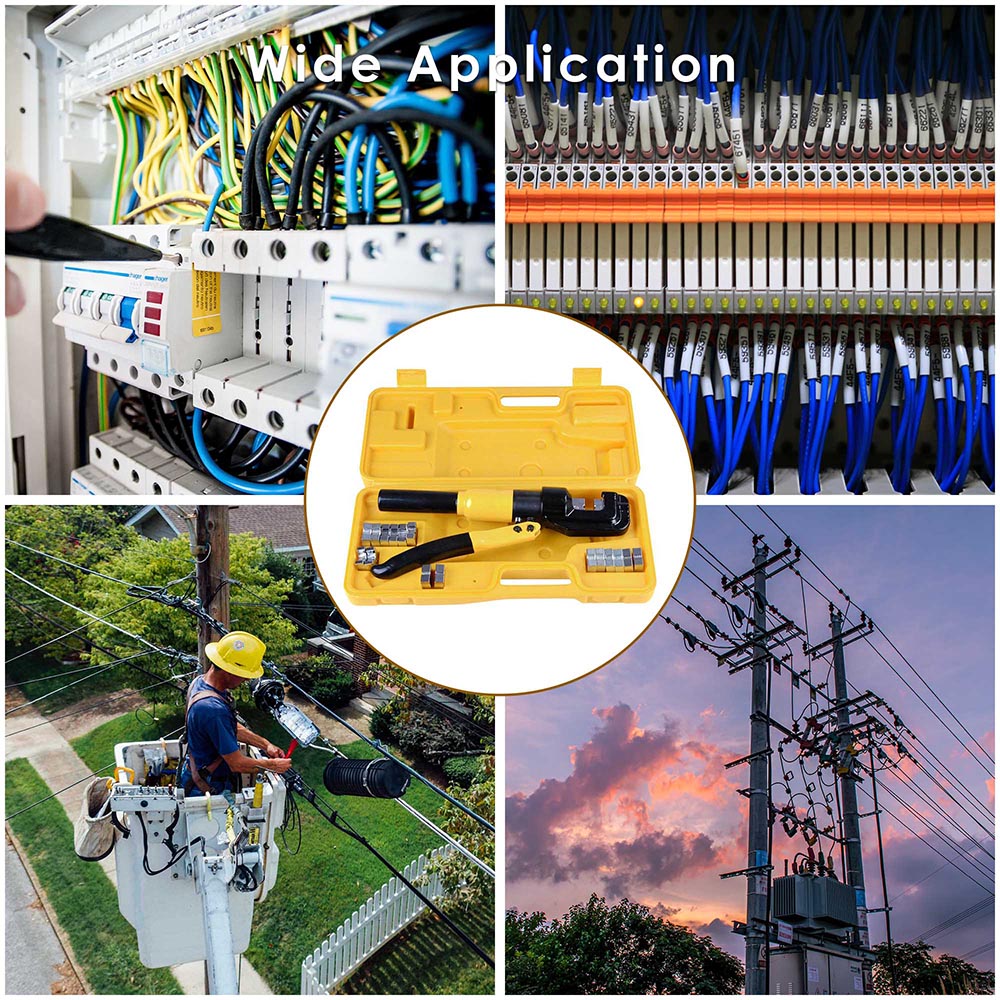

  • Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire

Product Details:

  • Max pressure: 10 Ton
  • Stroke Capacity: 3/8" (10mm)

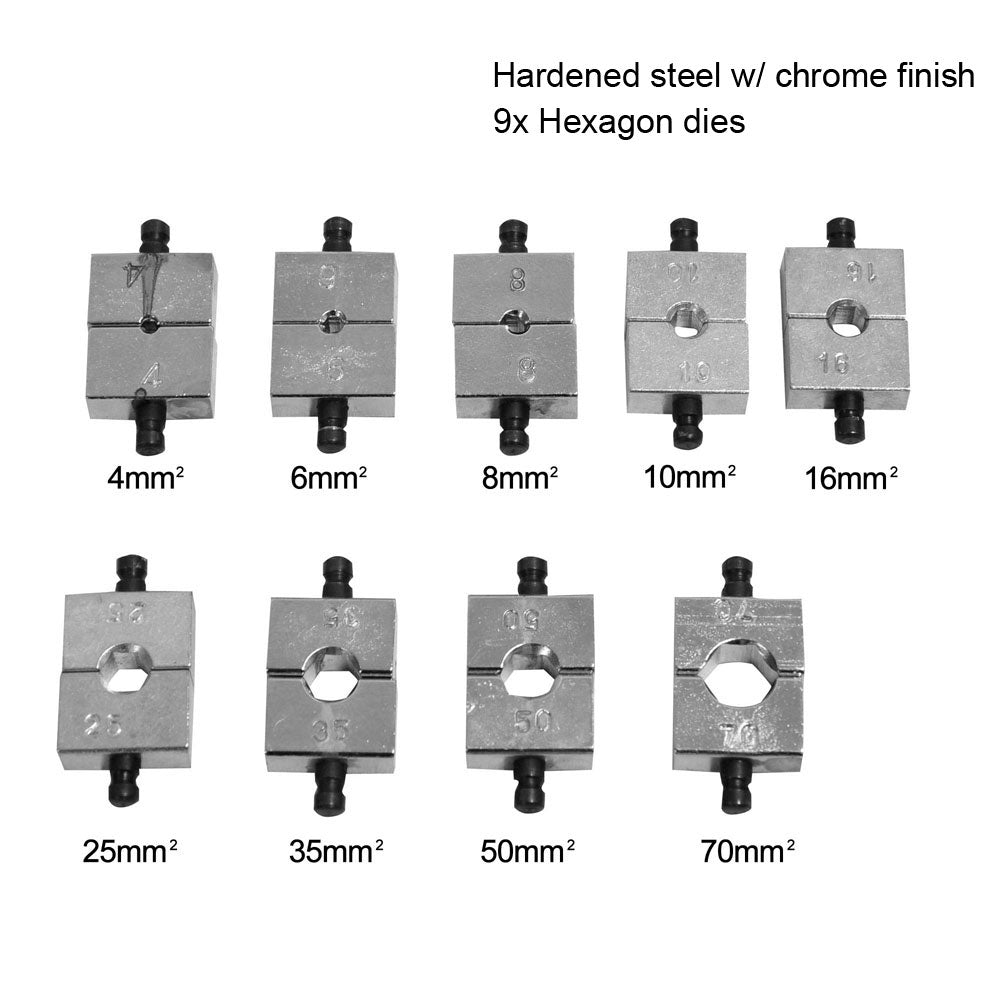

  • 9x dies: 4, 6, 8, 10, 16, 25, 35, 50, 70mm2

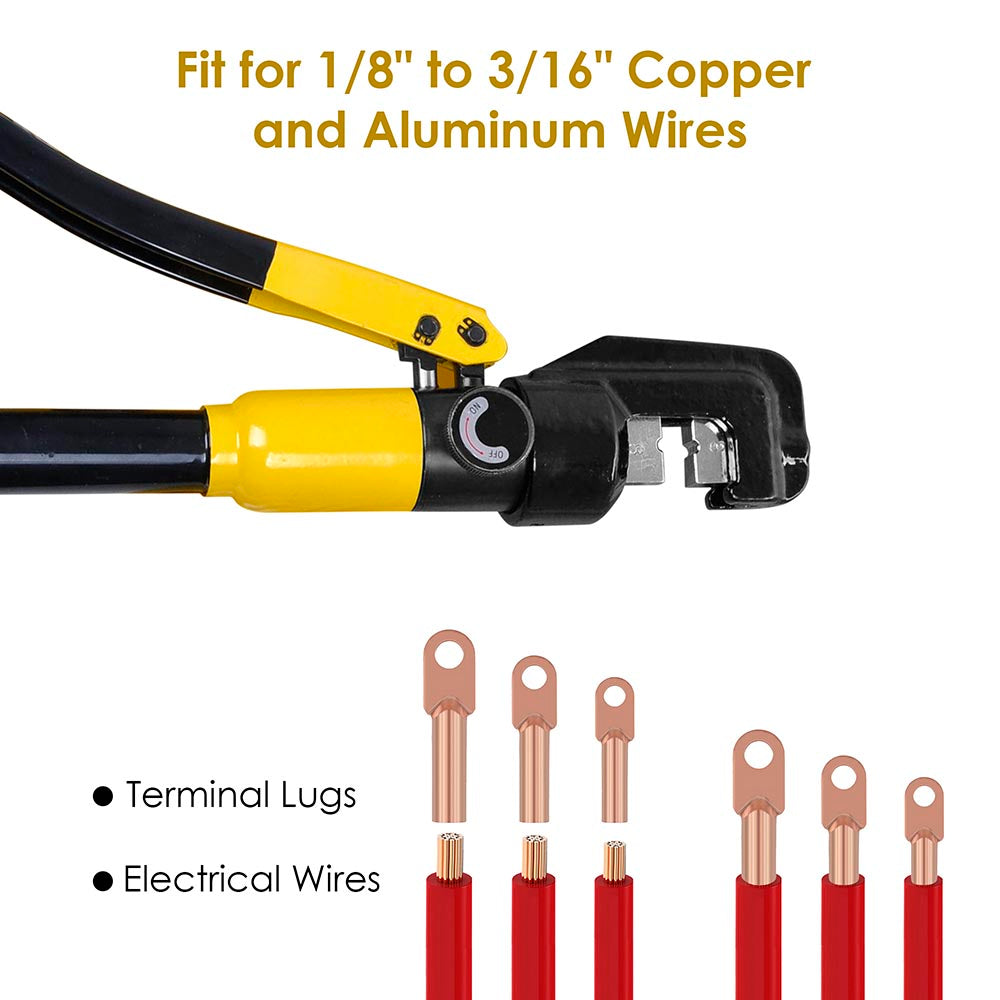

  • Fits For: 1/8" to 3/16" (12 AWG to 2/0 AWG) copper and aluminum wires
  • Case dimension: 13 3/4"L x 6 1/4"D x 3 1/4"H
  • Length: 12 3/16" (31 cm)
  • Material: 45# Steel, 40Cr Steel
  • Net Weight: 5.2 Lbs (2.37 kg)

Reference:

    AWG
    MM2
    12
    4
    10
    6
    10 - 8
    8
    8
    10
    6
    16
    4
    25
    2
    35
    1/0
    50
    2/0
    70

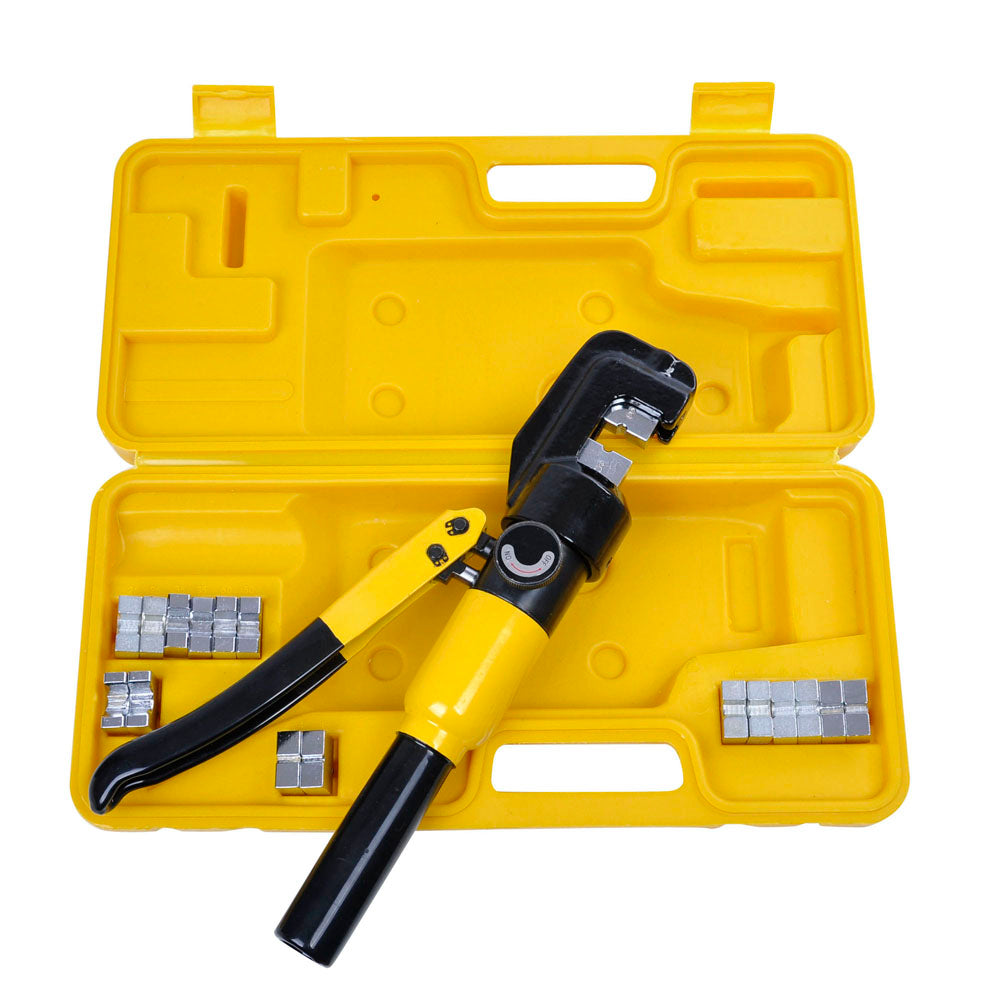

Also In The Box:

  • 1x 10-ton crimper
  • 9x dies (One Set of Dies has installed on the crimper.)
  • 1x Set of Seal Rings
  • 1x Plastic Carrying Case
  • 1x Manual

Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram
