Yescom Stainless Steel Expansion Bolts for Concrete 6ct.

Engineered for secure anchoring in solid concrete and masonry, these Stainless Steel Expansion Bolts create a firm attachment point for shade and rigging installations. Available in M8 and M10 size options, they offer dependable static load support for shade canopies, cable railings, and heavy storage fixtures—rated at 375 lbs for M8 or 705 lbs for M10. Depending on the size you choose, pair M8 bolts with our 1/8" 316 stainless steel wire ropes or vinyl-coated cable assemblies, or step up to M10 for broader compatibility with both 1/8" and 3/16" cables (sold separately). Not for overhead lifting or life-safety applications.

High Quality:

• Heavy-Duty Load Support: Delivers reliable static load capacities of 375 lbs (M8) or 705 lbs (M10), providing secure anchoring for shade sails, wire railings, and outdoor fixtures.
• All-Weather 304 Stainless Steel: Solid 304 stainless steel construction provides excellent resistance against rust, salt spray, and harsh weather for long-lasting indoor and outdoor use.
• Solid Masonry Anchoring: Engineered specifically for high-strength, permanent mounting in solid poured concrete, CMU block, brick, and natural stone.
• Generous Hook Clearance: Wide throat opening (0.71" M8 / 0.75" M10) allows easy, non-binding attachment to thimbles, quick links, turnbuckles, and looped wire cables.
• Complete 6-Pack Set: Comes as a ready-to-install set of 6 expansion hook assemblies, complete with hex nuts and washers for quick setup.

Product Details:

• Material: 304 Stainless Steel
• Finish: Metallic Silver

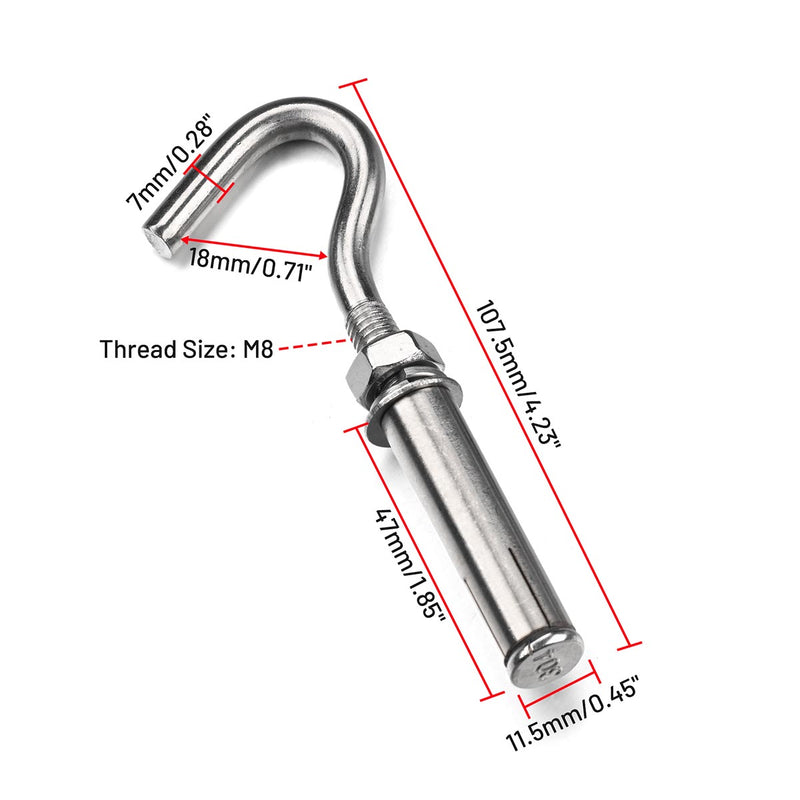

• M8 Option Specifications:
  • Thread Size: M8
  • Safe Working Load (Static): 375 lbs (170 kg)
  • Total Length (L): 4.23" (107.5 mm)
  • Anchor Insertion Depth (L): 1.85" (47 mm)
  • Required Drill Bit Diameter: 0.45" (11.5 mm)
  • Hook Opening (Clearance): 0.71" (18 mm)
  • Hook Material Diameter: 0.28" (7 mm)

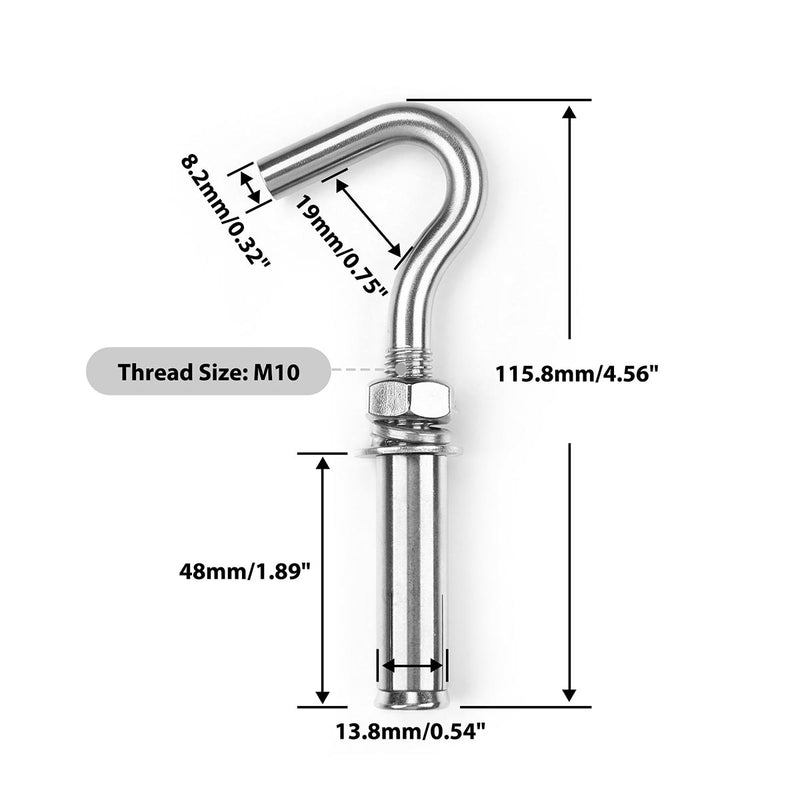

• M10 Option Specifications:
  • Thread Size: M10
  • Safe Working Load (Static): 705 lbs (320 kg)
  • Total Length (L): 4.56" (115.8 mm)
  • Anchor Insertion Depth (L): 1.89" (48 mm)
  • Required Drill Bit Diameter: 0.54" (13.8 mm)
  • Hook Opening (Clearance): 0.75" (19 mm)
  • Hook Material Diameter: 0.32" (8.2 mm)

Also In The Box:

• 6x Stainless Steel Expansion Anchor Hooks (M8 or M10, depending on selected size)

Shipping Disclaimer: Due to the size and weight of this product, it may be shipped in multiple packages. Packages may be delivered separately by the carrier.
