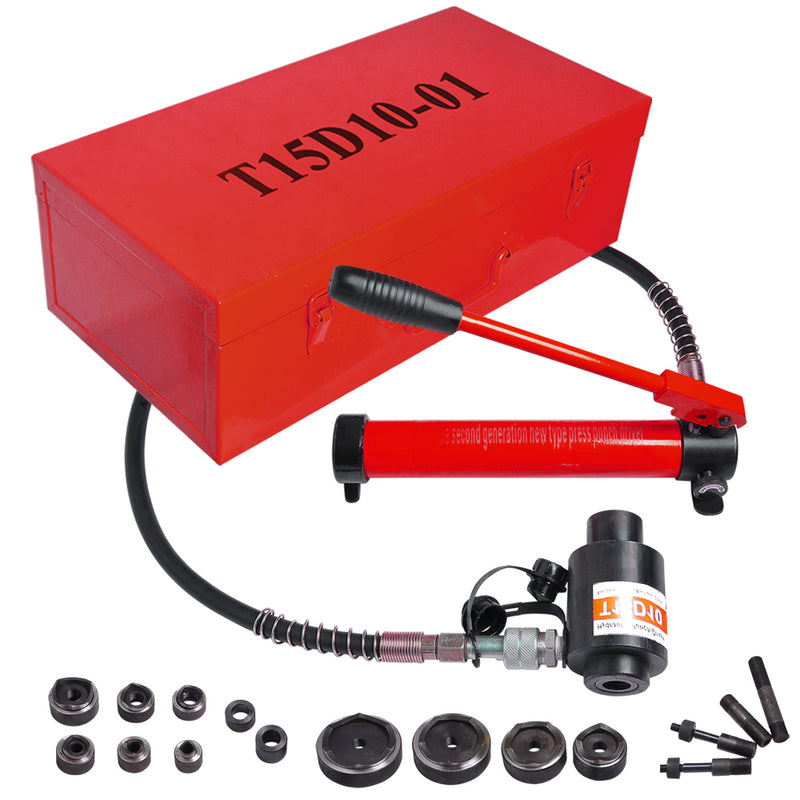

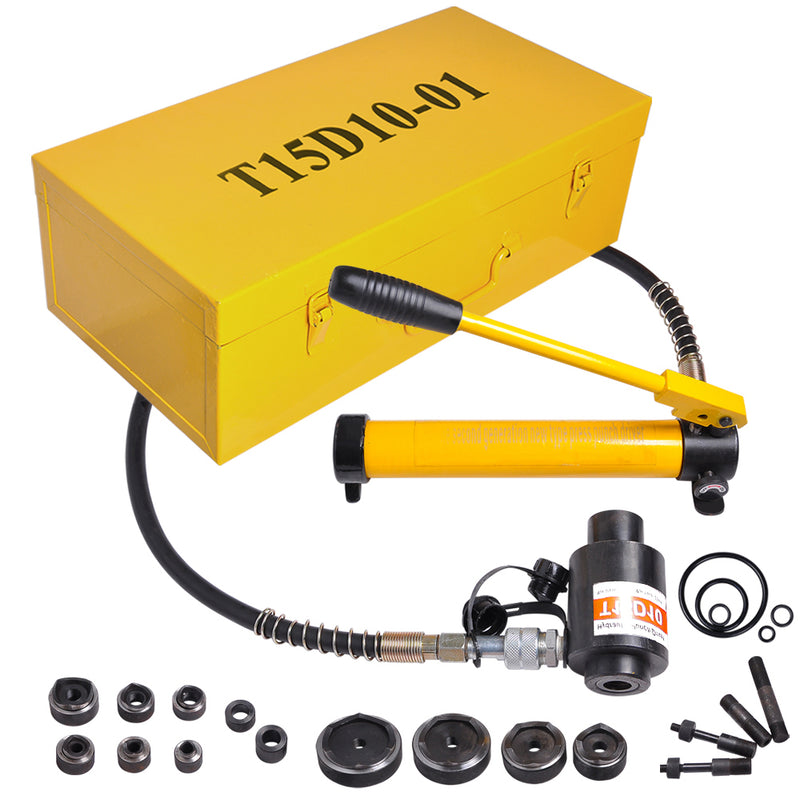

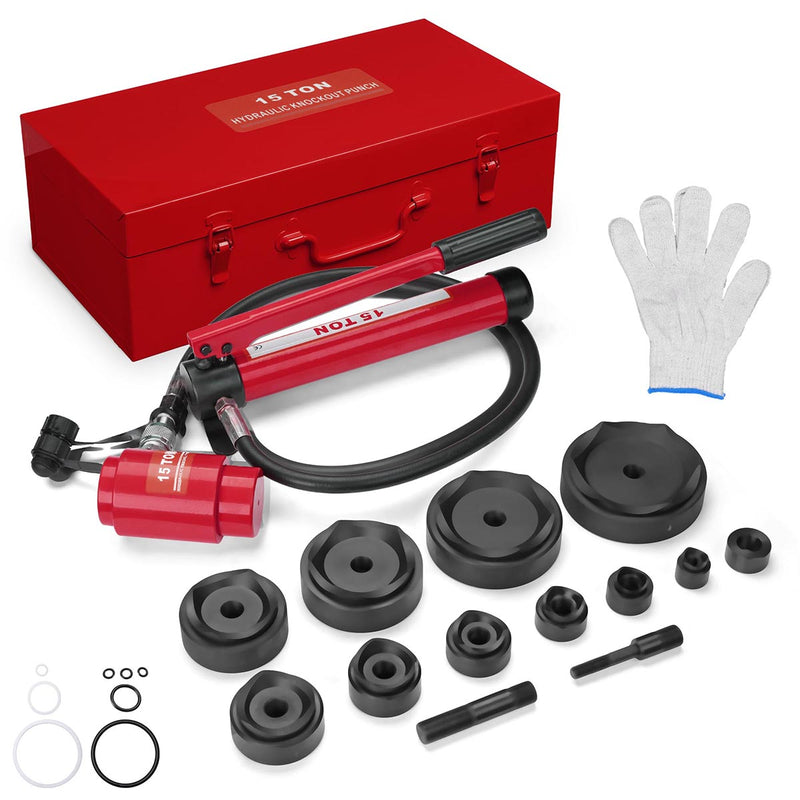

Yescom 15 Ton Hydraulic Punch Press w/ 10 Piece Tool Kit

Color: Yellow

  • Yellow
  • Red
Will not ship until [19041994]
Out of stock
Order in the next to get it between and hrsmins

Frequently Bought Together

< >
Total price:$ 379.78 $ 319.58

Throw out those old wrench-style punches and upgrade with this Brand New Complete 15-Ton Hydraulic Punch Driver Kit, even tough material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance, chemical industry, ship & machinery and many more!

High Quality:

  • 10 Dies & Punches Interchangeable to Meet Different Needs
  • Hydraulic mechanism pump produces 15T strong pressure for providing high punching accuracy and fast punching speed which is 10 times much faster than common wrenches, more labor-saving on punching uniform holes; pump with pressure hose for adjusting the angle of the ram flexibly
  • 40Cr steel dies and 45# steel pump body for ensuring high strength, sturdiness and durability, stable construction
  • Rotatable ""ON / OFF"" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value, perfect for adding more safety
  • Anti-skid plastic grip at the end of the handle for easy and comfortable pressing
  • Easy Seating with the Brackets on the Bottom of the Hydraulic Pump
  • Portable Metal Case for Convenient traveling
  • Sturdy metal case with handle and double metal locks for convenient and safe storage
  • Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.

Product Details:

  • Color Options: Red/ Yellow
  • Pump Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)
  • Metal Case Dimension(LxWxH): 18 1/2" x  9 7/16" x 5 7/8" (47 x 24 x 15 cm)
  • Max Pressure: 15 ton
  • Max Thickness for Iron: 1/8" (11 gauge)
  • Max Thickness for Stainless Steel: 1/16" (16 gauge)
  • 10pc Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4"
  • Piston Shaft Sizes(LxDia.): 4 3/4" x 3/4" (12 x 1.9 cm), 3 1/8" x 3/4" (8 x 1.9 cm)
  • Draw Stud Size(LxDia.): 4 1/8" x 5/16" (10.5 x 0.78 cm)
  • Hose Length: 50 3/8" (128 cm)
  • Material: 45# Steel, Aluminum Alloy, 40Cr Steel
  • Net Weight: 48.5 Lbs (22 kg)

Corresponding Size:

    Actual Hole Size
    Dies & Punches Size
    0.885" (22.5mm)
    1/2"
    1.115" (28.3mm)
    3/4"
    1.362" (34.6mm)
    1"
    1.701"(43.2mm)
    1 1/4"
    1.951"(49.6mm)
    1 1/2"
    2.416"(61.5mm)
    2"
    2.914"(74mm)
    2 1/2"
    3.539"(89.9mm)
    3"
    4.044"(102.7mm)
    3 1/2"
    4.544"(115.4mm)
    4"

Also In The Box:

  • 1 x 15-Ton Pump
  • 1 x Ram with Hose
  • 10 x Dies & Punches
  • 2 x Piston Shafts
  • 2 x Draw Studs
  • 2 x Spacers
  • 1 x Manual
  • 1 x Sturdy Metal Carrying Case

NOTICE: Do not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
