Victor-Style Welding & Cutting Torch Kit Oxygen Acetylene

243.99 $ 329.99
Quantity
SKU: YES4903
Product Type: Solder Station
Options

Shop this Victor-Style Welding & Cutting Torch Kit Oxygen Acetylene With Portable Tote and Refillable Tanks. Perfect for iron or steel welding, plus brazing, braze-welding, cutting, bending and forming.

Features:

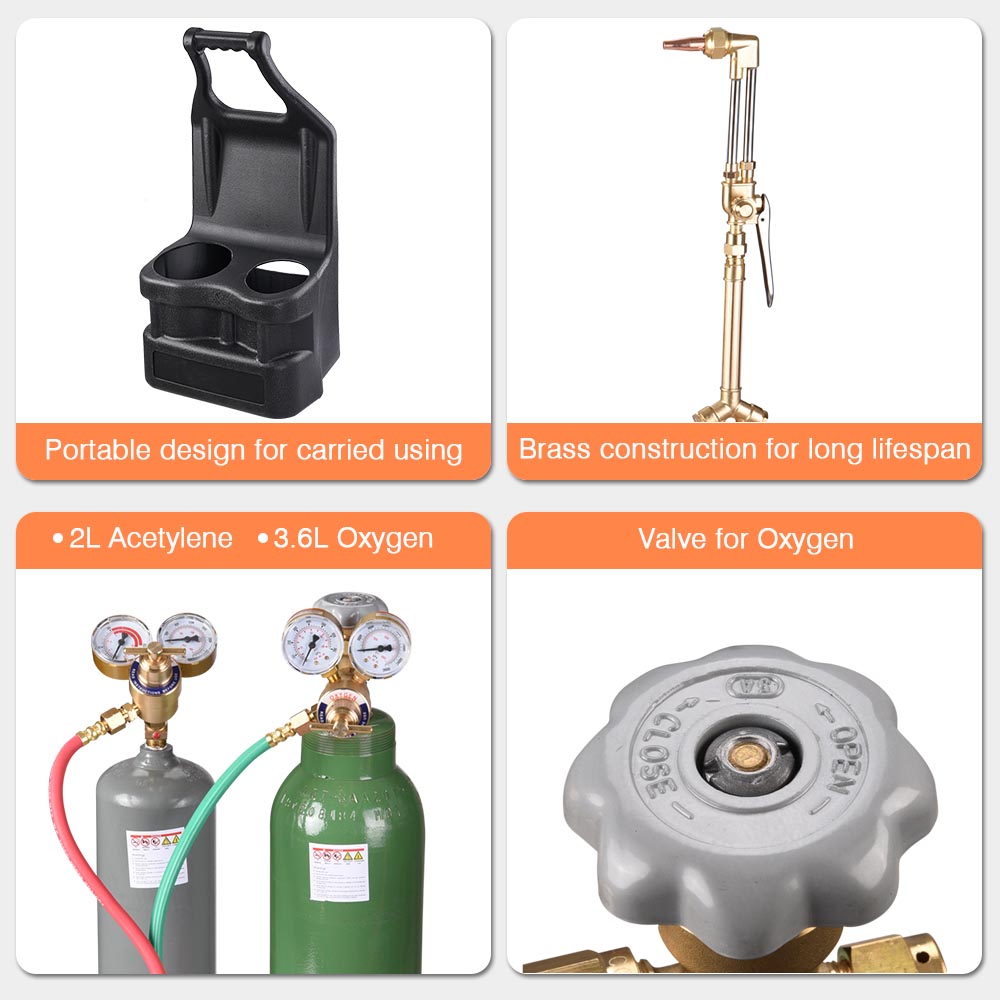

  • Welding & Cutting Torch Kit Oxygen Acetylene with Portable Tote and Tanks
  • Extremely Popular for General Maintenance Work, Metal Sculpture, Automotive Repair, Air Conditioning, Refrigeration ETC
  • Light to Medium Duty Portable Outfit
  • Waterproof Storage Compartment for Small Items
  • Rear entry regulators for better balance on the small cylinders

Applications:

  • Suitable for welding pipes and tubes, fabricate metal artwork and other metal repair work
  • Suitable for iron or steel welding, plus brazing, braze-welding, cutting, bending and forming

Specifications:

  • Welding gun handle:
    • Oxygen pressure: 0.15 - 0.3 MPa
    • Acetylene pressure: 0.015 - 0.02 MPa
    • Propane pressure: 0.02 - 0.3 MPa
    • Welds up to: 3/16" (5 mm)
  • Cutting upper:
    • Oxygen pressure: 0.15 - 0.5 MPa
    • Acetylene pressure: 0.02 - 0.07 Mpa
    • Propane pressure: 0.02 - 0.1 MPa
    • Cuts up to: 1/2" (12 mm)

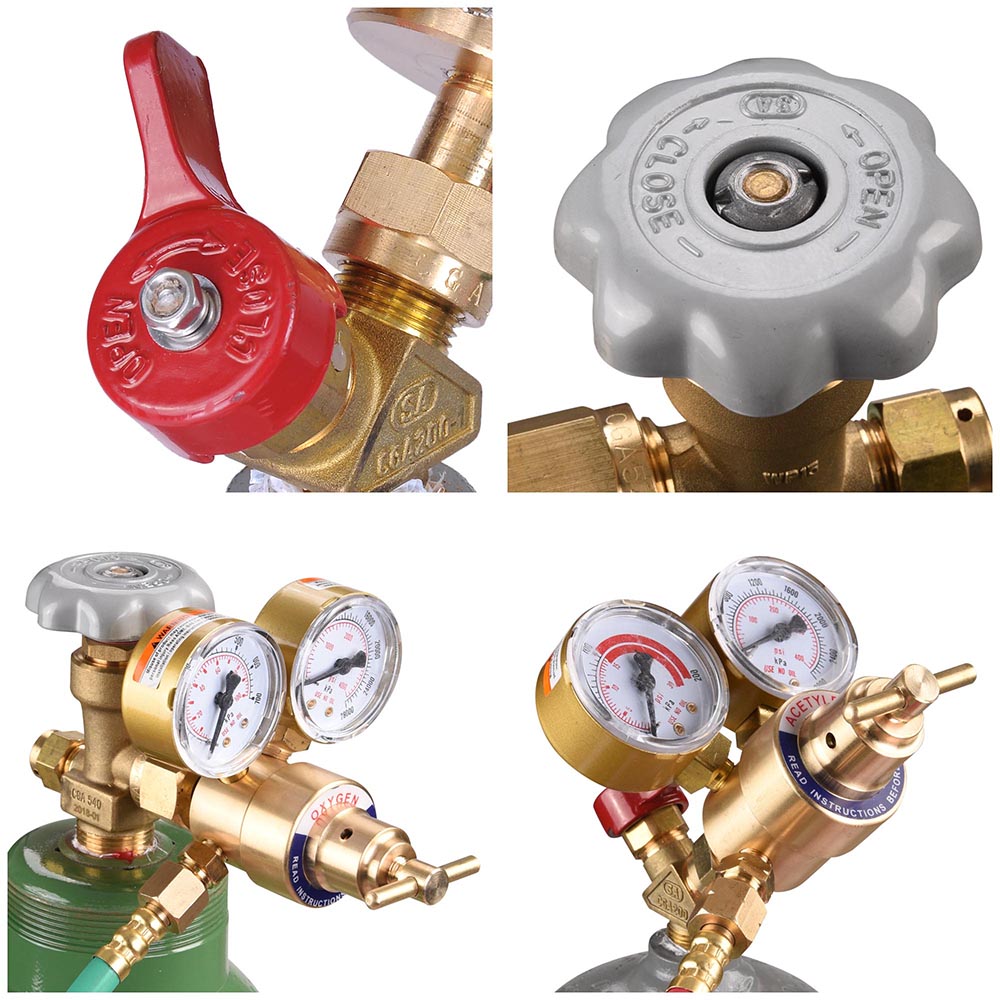

  • Gas regulator:
    • Material: Copper
    • 1 1/2" pressure gauge
    • Sintered copper filter
    • Oxygen regulator:
      • Maximum pressure of gas inlet: 23 MPa
      • Maximum pressure of gas outlet: 1 MPa
      • Maximum flow: 20 m³/h
    • Acetylene regulator:
      • Maximum pressure of gas inlet: 23 MPa
      • Maximum pressure of gas outlet: 0.1 MPa
      • Maximum flow: 5 m³/h
  • Acetylene cylinder:
    • Capacity: 2 L
    • Diameter: 4" (102 mm)
    • Height: 16 1/4" (413 mm)
    • Thickness: 1/8" (2.8 mm)
    • Leakage pressure: 3.0 MPa
    • Working pressure: 1.56 MPa
    • Material: ST14
  • Oxygen cylinder:
    • Capacity: 4 L
    • Diameter: 5 1/4" (133 mm)
    • Height: 14 9/16" (370 mm)
    • Thickness: 3/16" (4.5 mm)
    • Working pressure: 1.56 MPa
    • Material: ST14
  • Welding two-color tube:
    • Inner diameter: 3/16" (5 mm)
    • Outer diameter: 7/16" (11 mm)
    • Working pressure: 200 PSI
    • Maximum pressure: 900 PSI
    • Length: 13' (4 m)

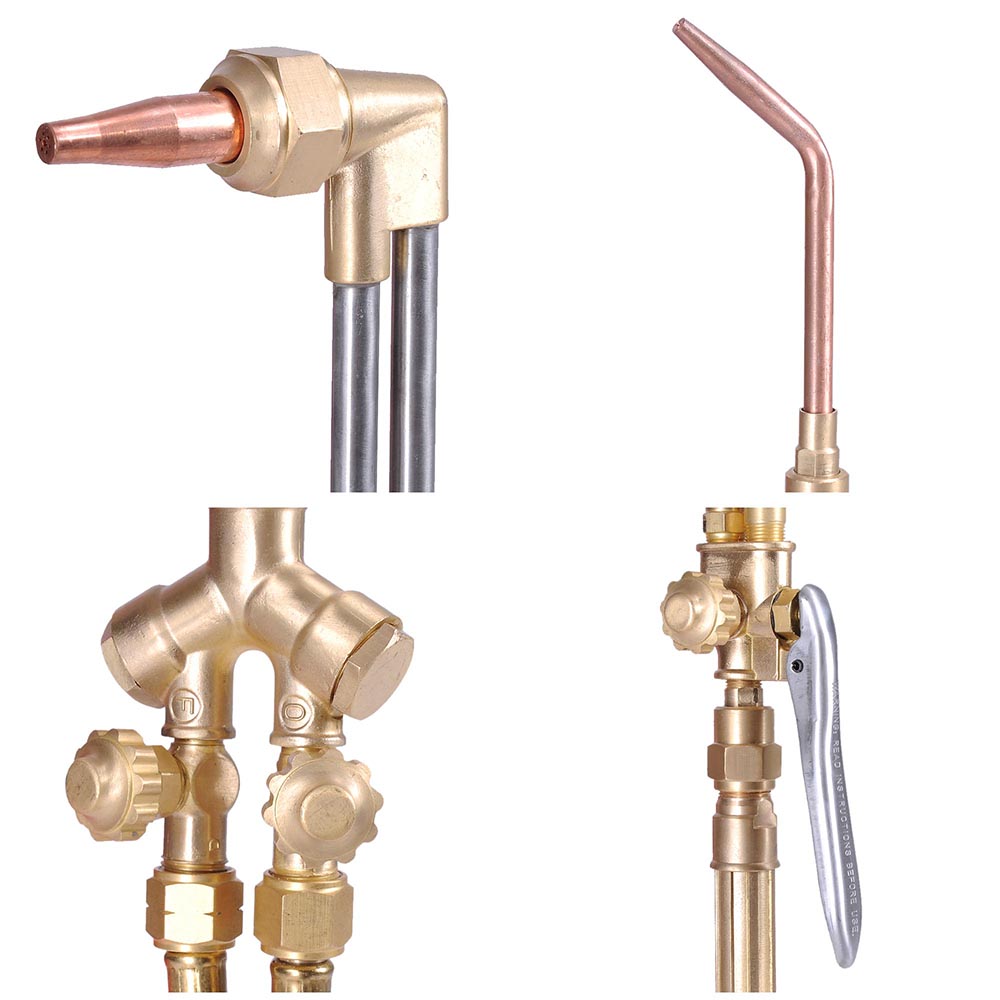

  • Welding pole:
    • Size: #2
    • Welding tip: 0-3-101

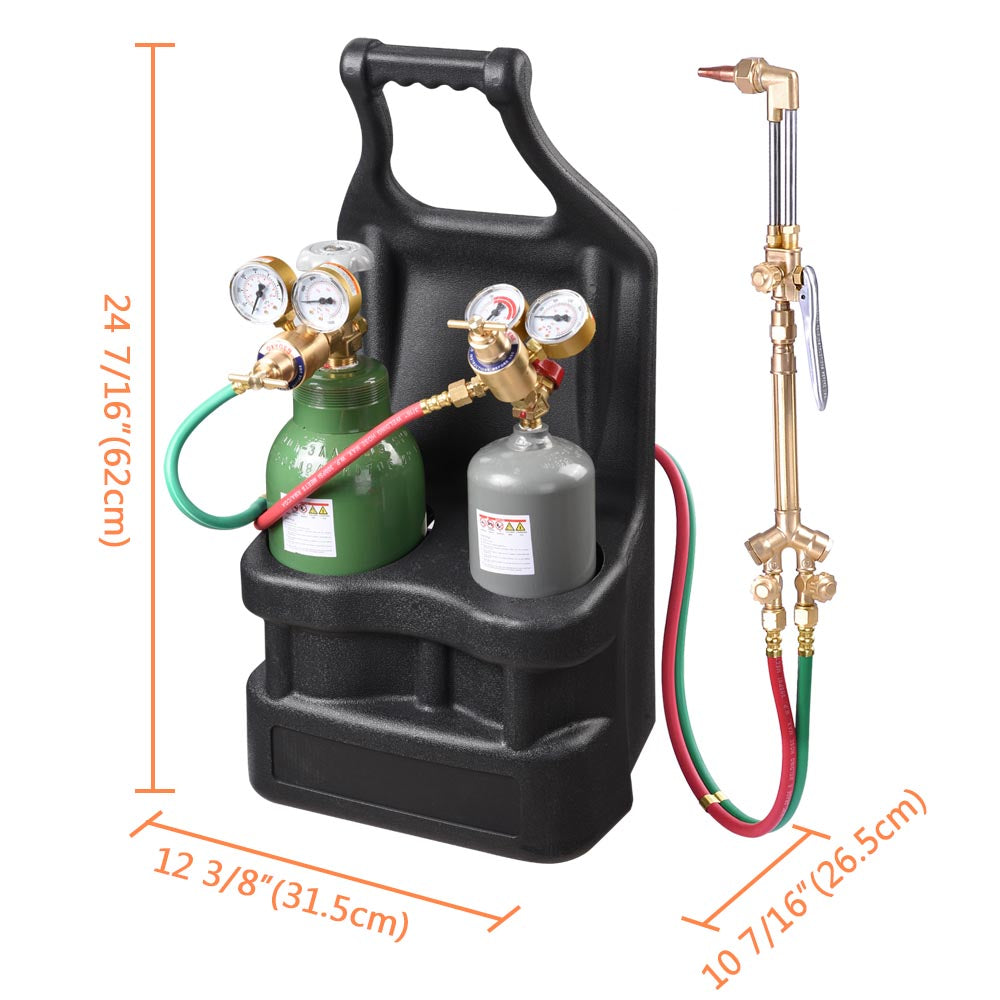

  • Overall Dimension (LxWxH): 12 3/8" x 10 7/16" x 24 7/16" (31.5 x 26.5 x 62 cm)

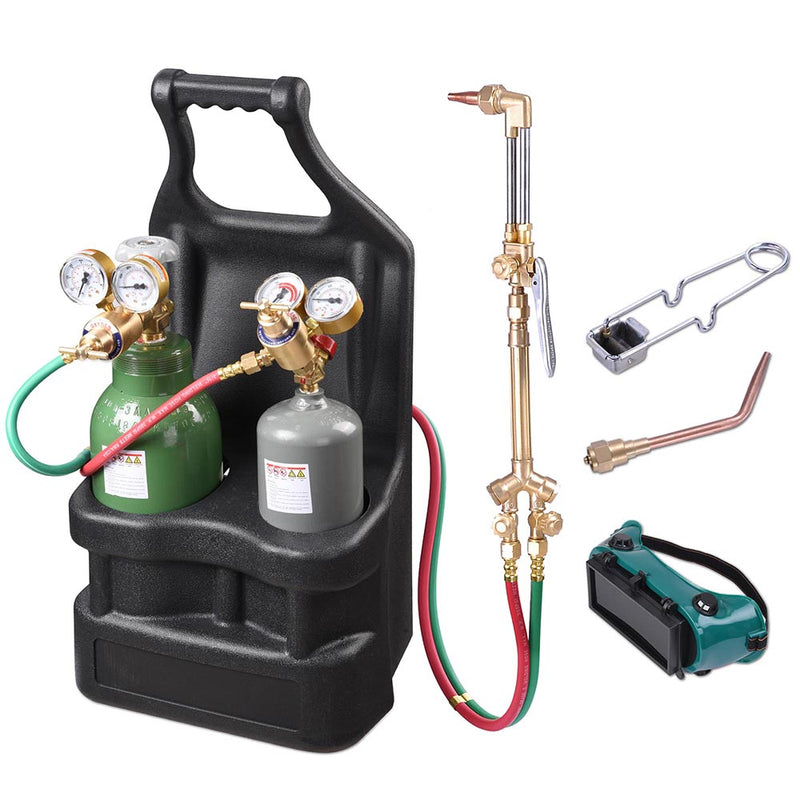

Package Contents:

  • 1x 4L Oxygen cylinders CGA540 (empty)
  • 1x 2L Acetylene cylinders CGA200 (empty)
  • 1x Welding Goggles
  • 1x Oxygen Regulator
  • 1x Acetylene Regulator
  • 2x Welding Tips #1 and #2
  • 1x Cutting Torch
  • 1x Twin Welding Hose
  • 1x Spark Lighter
  • 1x Red Carrying Tote
  • 1x manual

Note: These tanks have not DOT certified. But they are Refillable.
