Red 15 Ton Hydraulic Punch Press w/ 6 Piece Tool Kit

$ 199.99 $ 450.99
Quantity
SKU: YES2541
Options

Throw out those old wrench-style punches and upgrade with this Brand New Complete 15-Ton Hydraulic Punch Driver Kit, even tough material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance,chemical industry, ship & machinery and many more!

Features:

  • 10 Dies & Punches Interchangeable to Meet Different Needs
  • Plastic Grip at the End of the Long Steel Handle
  • Rotatable ON / OFF Switch for safe operation
  • Easy Seating with the Brackets on the Bottom of the Hydraulic Pump
  • Portable Metal Case for Convenient traveling
  • Two Metal Clasps to Lock the Kit Firmly
  • Laborsaving and Fast Operation
  • Accommodating More Material: Stainless Steel, Aluminum, Steel, Plastic etc.

Specification:

  • Max Pressure:15 ton
  • Max Thickness for Steel: 3.2 mm ( 11 gauge )
  • Max Thickness for Stainless Steel: 2 mm ( 14 gauge )
  • Ram with 50 1/2" High Pressure Hose

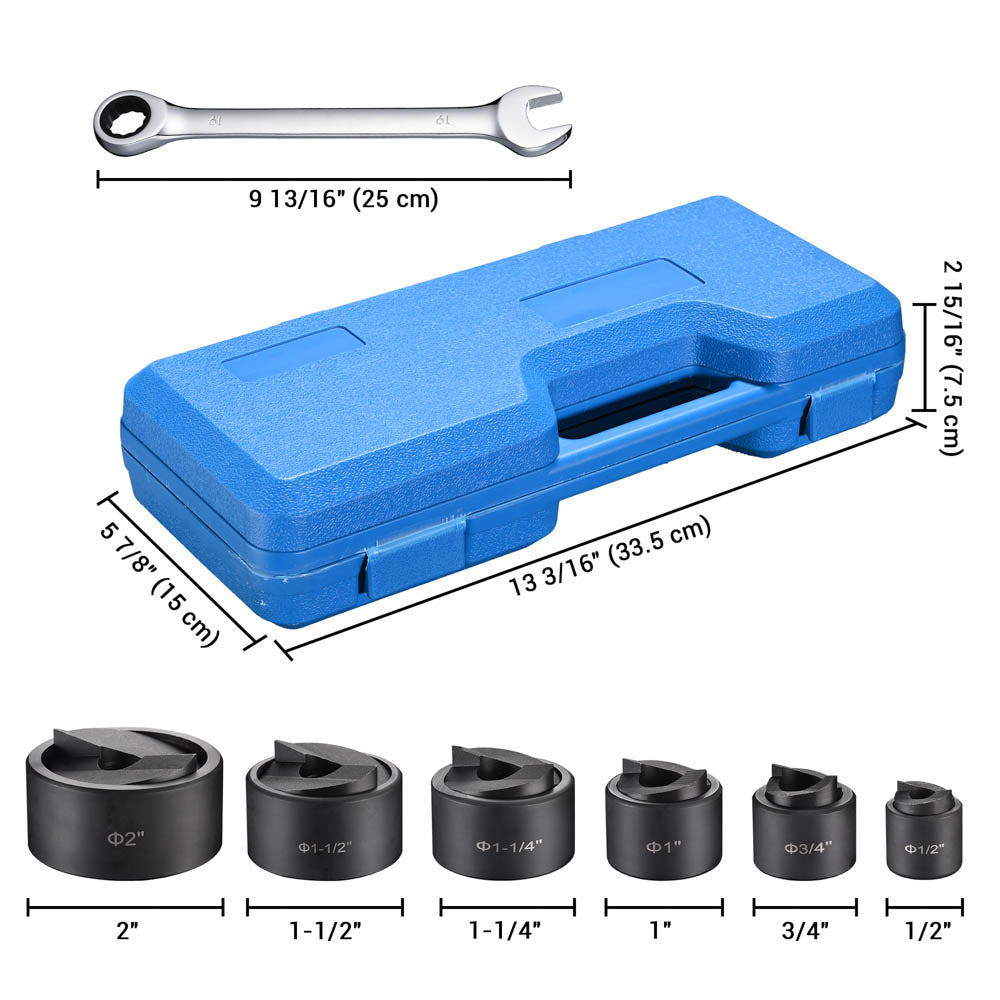

  • 10pc Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4"
  • 2pc Piston Shafts : 4 3/4"L x 3/4"Diam & 3 1/8"L x 3/4"Diam
  • 2pc Draw Studs : 4 1/8"L x 0.31"Diam
  • Total Weight: 53 lbs

Corresponding Size:

    Actual Hole Size
    Dies & Punches Size
    0.885" (22.5mm)
    1/2"
    1.115" (28.3mm)
    3/4"
    1.362" (34.6mm)
    1"
    1.701"(43.2mm)
    1 1/4"
    1.951"(49.6mm)
    1 1/2"
    2.416"(61.5mm)
    2"
    2.914"(74mm)
    2 1/2"
    3.539"(89.9mm)
    3"
    4.044"(102.7mm)
    3 1/2"
    4.544"(115.4mm)
    4"

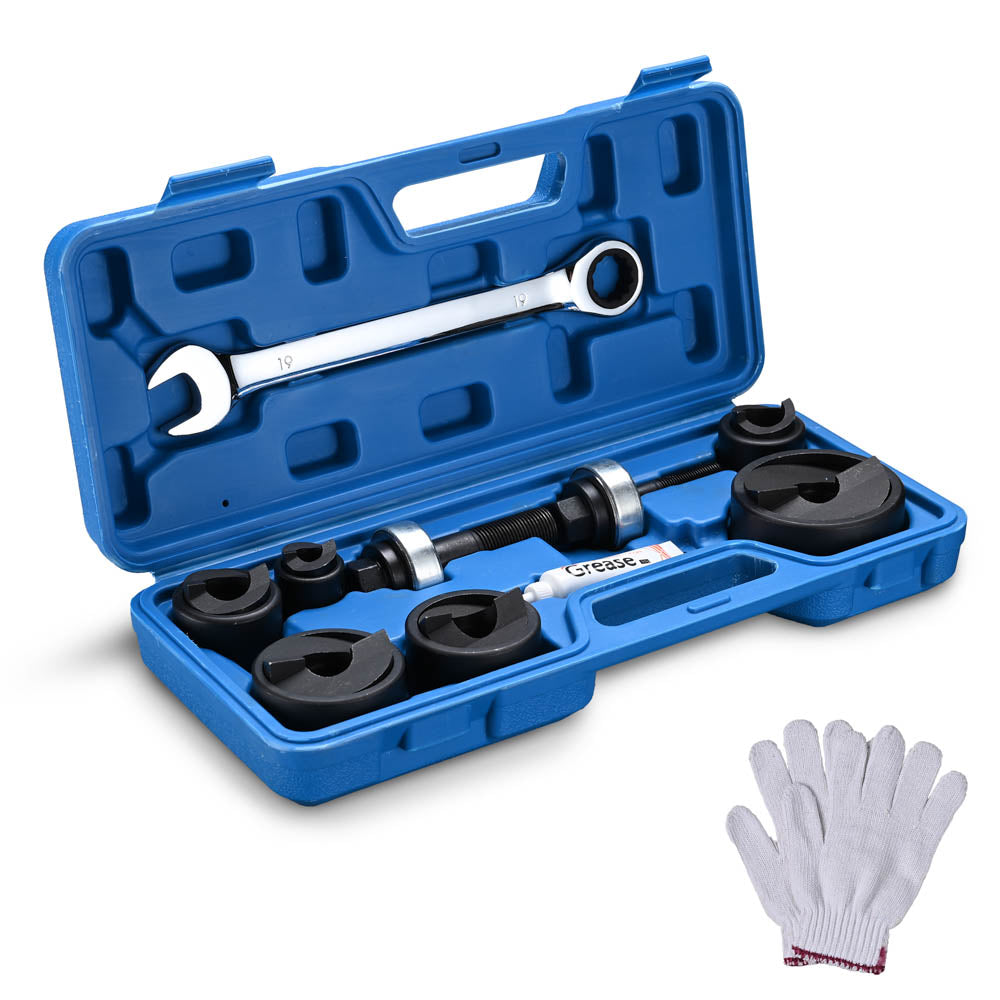

Package Content:

  • 1 x 15-Ton Pump
  • 1 x Ram with Hose
  • 10 x Dies & Punches
  • 2 x Piston Shafts
  • 2 x Draw Studs
  • 2 x Spacers
  • 1 x Manual
  • 1 x Sturdy Metal Carrying Case
NOTICE: Do Not Operate The Pump After Ram Motion Stops. Continuing to Operate The Pump Lever After The Ram Stops Will Damage The Ram
