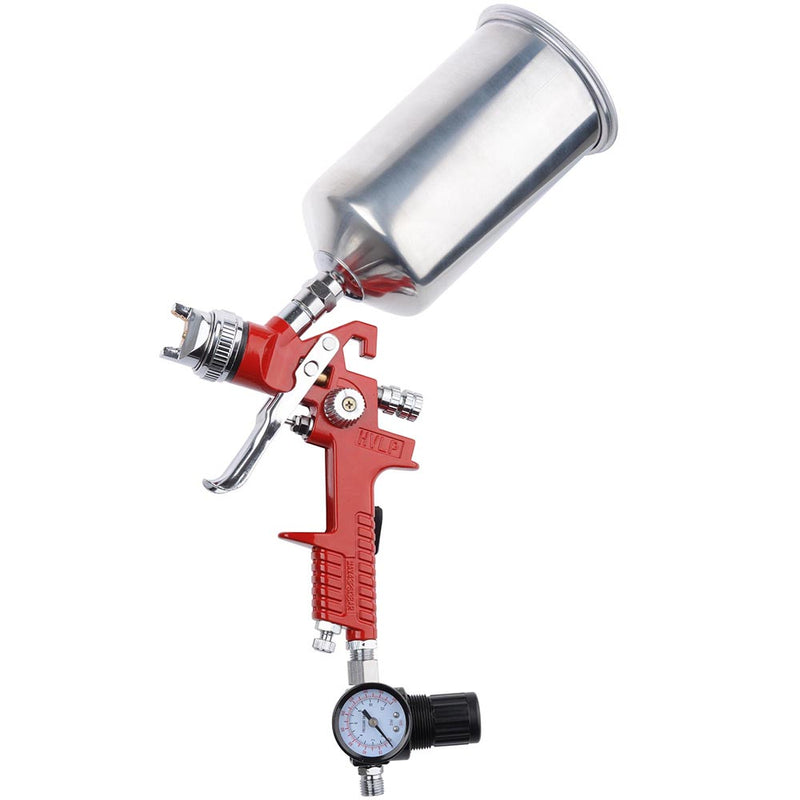

Automotive Paint Sprayer Gavity Feed HVLP Spray Gun 1.4mm

$ 35.99 $ 55.99
Quantity
SKU: YES2612
Options

Here we are offering a Professional Gravity Feed Production HVLP(High Volume Low Pressure)Spray Gun with 1.4mm Fluid Tip and Regulator. This spray gun supplies low pressure through the air cap which makes the spraying softer, easily controlled and less overspray in high transfer efficiency. Ideal for spraying basecoats, clearcoats and other light to medium viscosity coatings!

Features:

  • Designed to provide equal atomization and partical size for all kinds of surface painting.
  • Stainless steel needle and nozzle accommodate a variety of coatings.
  • Light weight, ergonomic design and easy trigger pivot reduces operating fatigue.

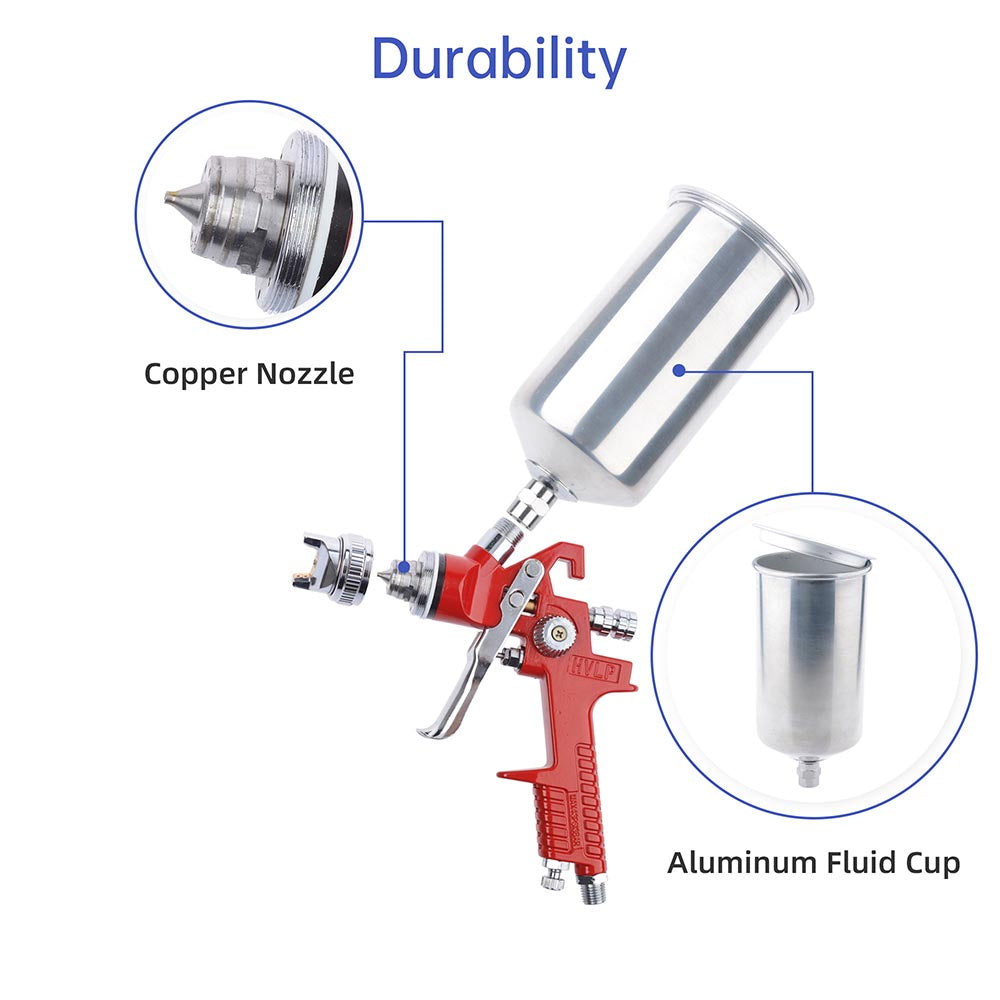

  • Precise 1.4mm stainless steel needle and nozzle set.
  • 3 Knobs for full adjustment: Fluid, Pattern and Air Pressure Controls.
  • 1L Stainless Steel Fluid Cup with Lid.

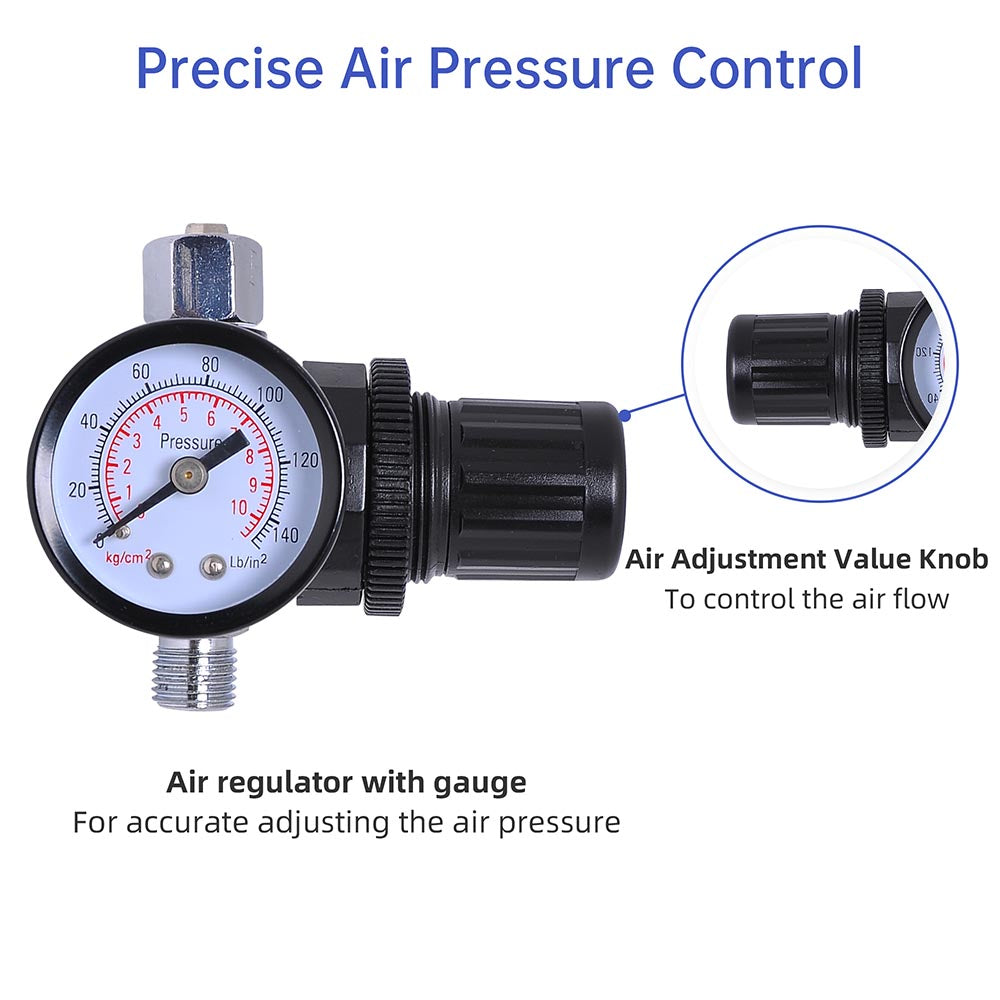

  • Comes with a True Micrometer Air Regulator with Gauge as free gift.

Specifications:

SKU 31VLP001-1-14
Air Inlet 1/4"
Type of Feed Gravity
Diameter of Nozzle 1.4mm
Recommended Air Pressure 29-50.7 PSI (2.0-3.5 BAR)
Max. Pressure of Air 90 PSI (6.2 BAR)
Paint Capacity 1L
Average Air Consumption 4.2-7.1 CMF (117-199 L/MIN)
Pattern Width 7.1" -9.84"
A-weighted Sound Pressure Level 74.5 dB(A)
Sound Power Level 85.5 dB(A)

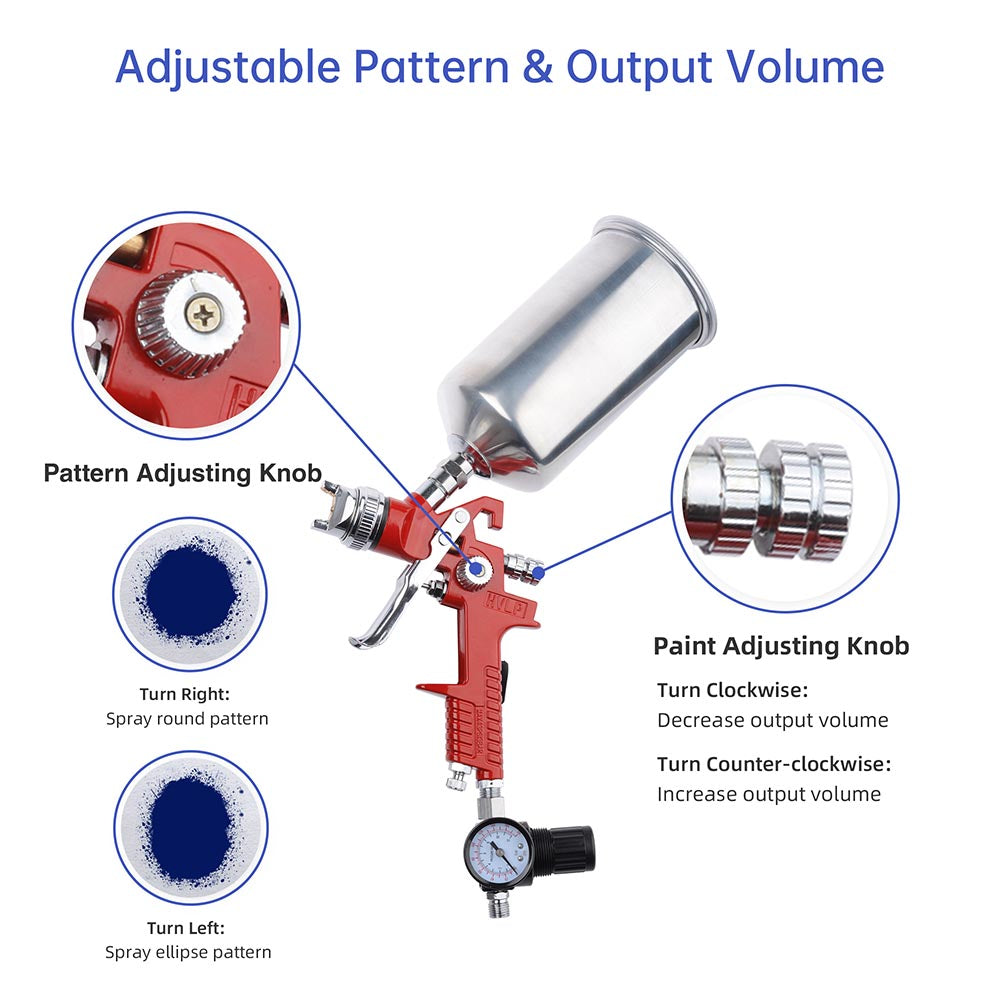

Fine Adjustment:

The desired pattern and fine atomization can be easily obtained by regulating the Pattern Adjusting Knob and Fluid Adjusting Knob.

  • Pattern Adjustment: Turn the Pattern Adjusting Knob to the right until tight will make spray pattern round, or turn left make spray pattern ellipse.
  • Fluid Adjustment: Turn the Fluid Adjusting Knob clockwise will decrease the volume of fluid output and counter-clockwise will increase fluid output.

Package Includes:

  • 1x HVLP Spray Gun with a 1.4mm Fluid Tip
  • 1x Stainless Steel Cup with Lid
  • 1x True Micrometer Air Regulator with Gauge
  • 1x Spanner Wrench
  • 1x Hex Wrench
  • 1x Screw set
  • 1x Brush
  • 2x Cup Filters
  • 1x Instruction Manual (General for some models)
