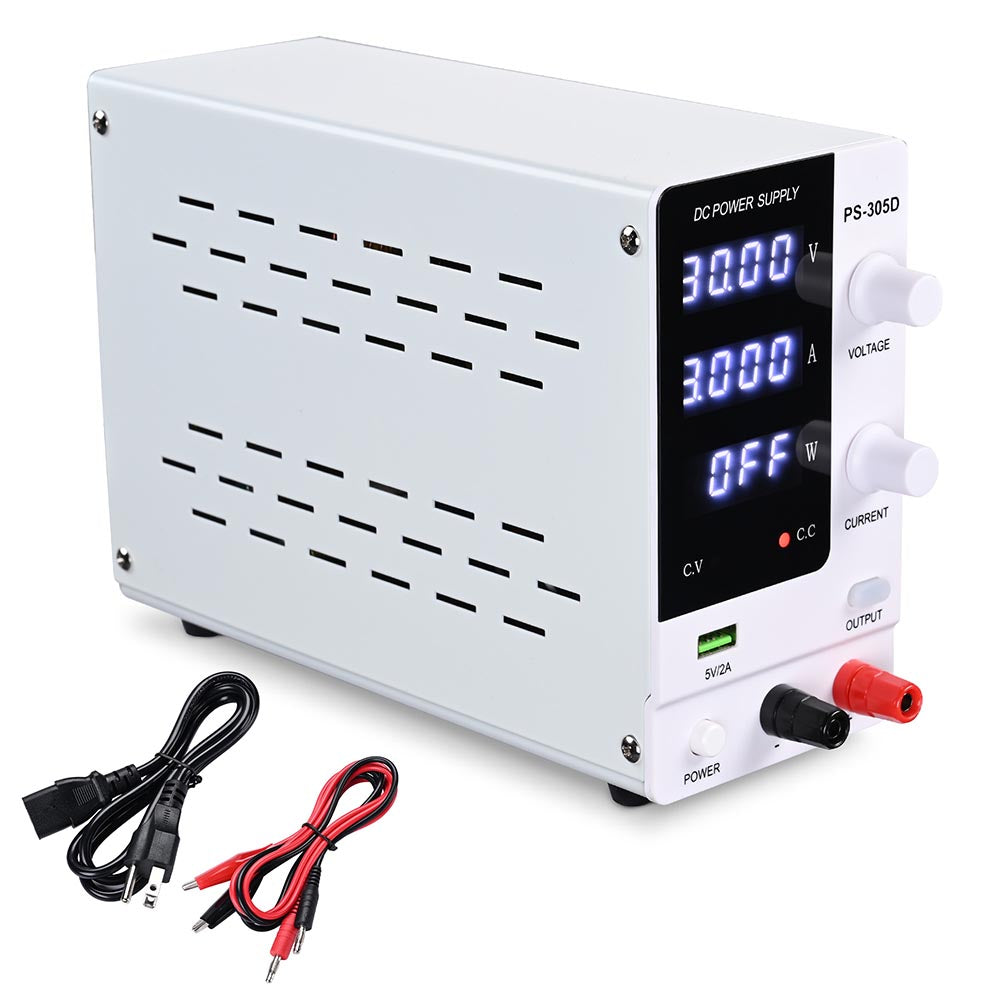

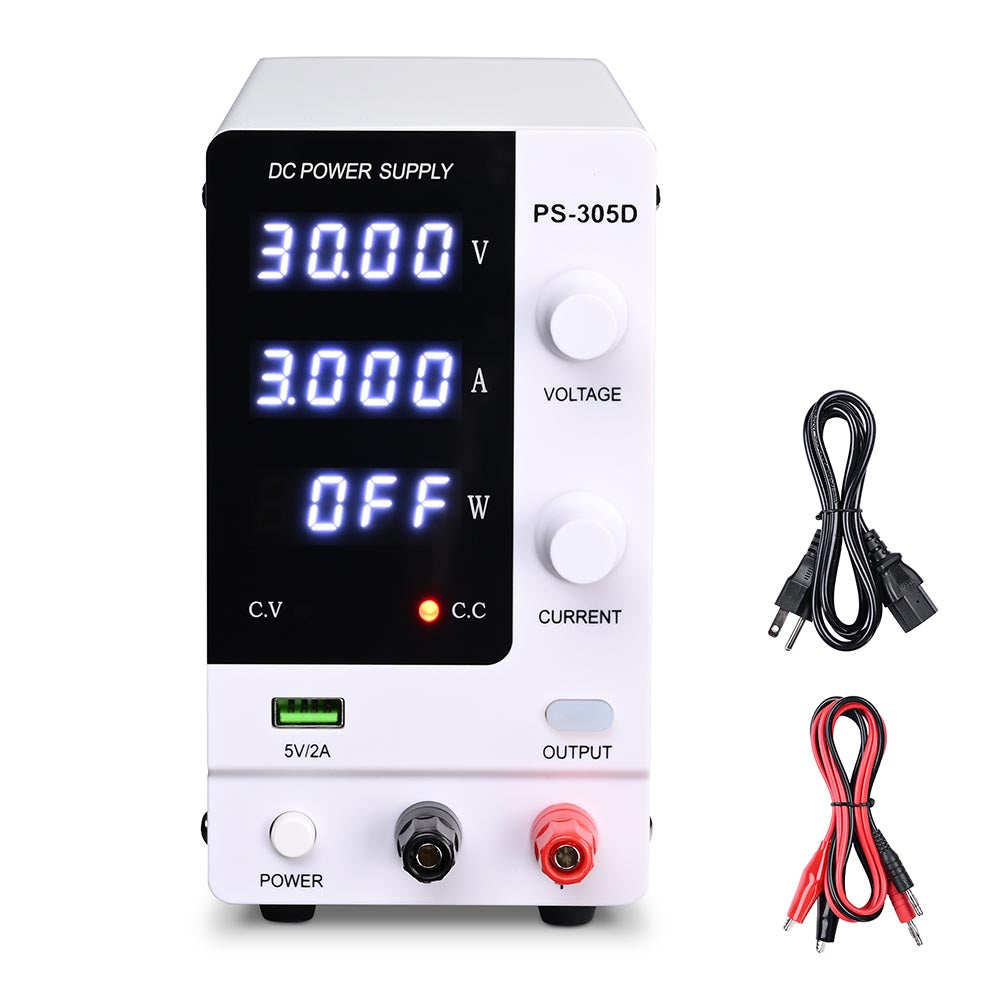

Lab Precision DC Power Supply is specialized for scientific research, product modification, mobile computer repair and widely used by laboratories, universities, etc. This DC Power Supply features variable output current 0-30v and 0-5a. High reliability, low noise and circuit overload protection, excellent choice for business.
Features:
- Compact Design
- All Metal Construction

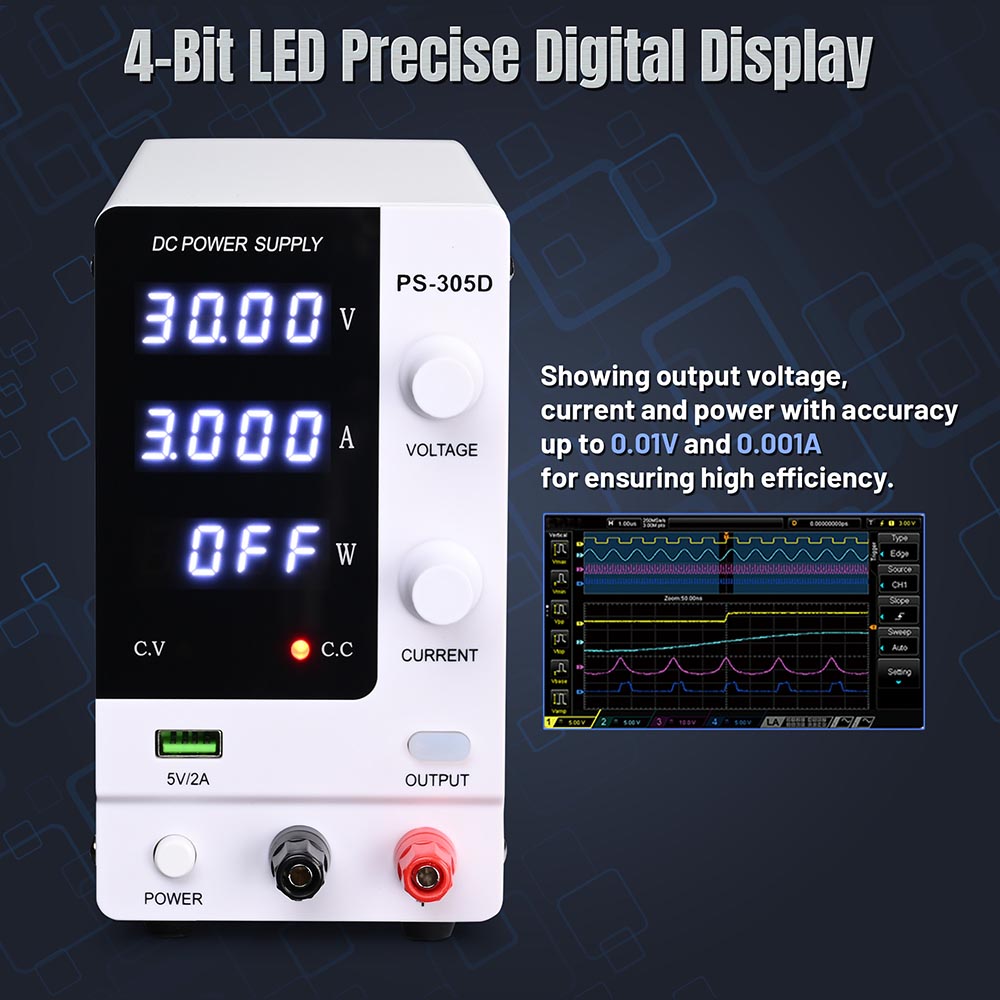

- Dual LED Three Digital Tube Display
- Current mA / A Conversion Display
- High Stabilized Output Voltage

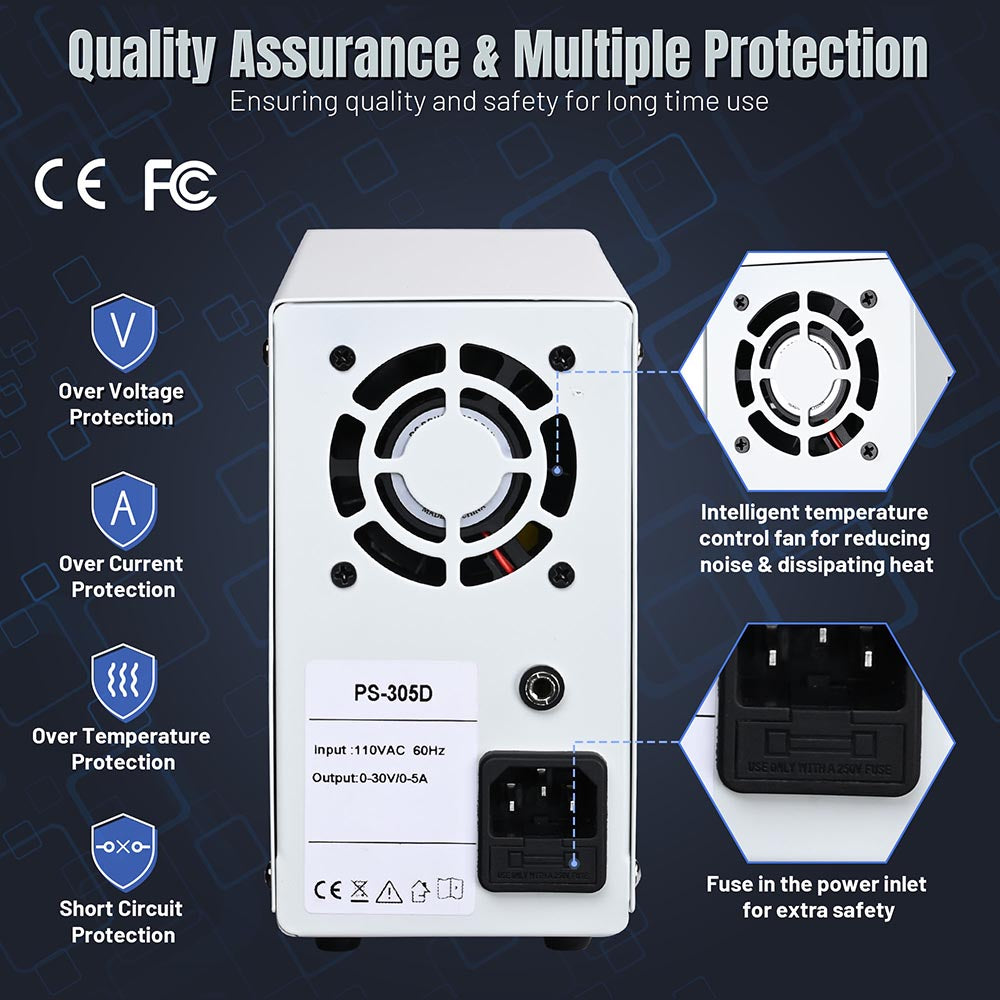

- over voltage protection (OVP)
- open circuit protection (OCP)
- over temperature protection (OTP)
Specifications:

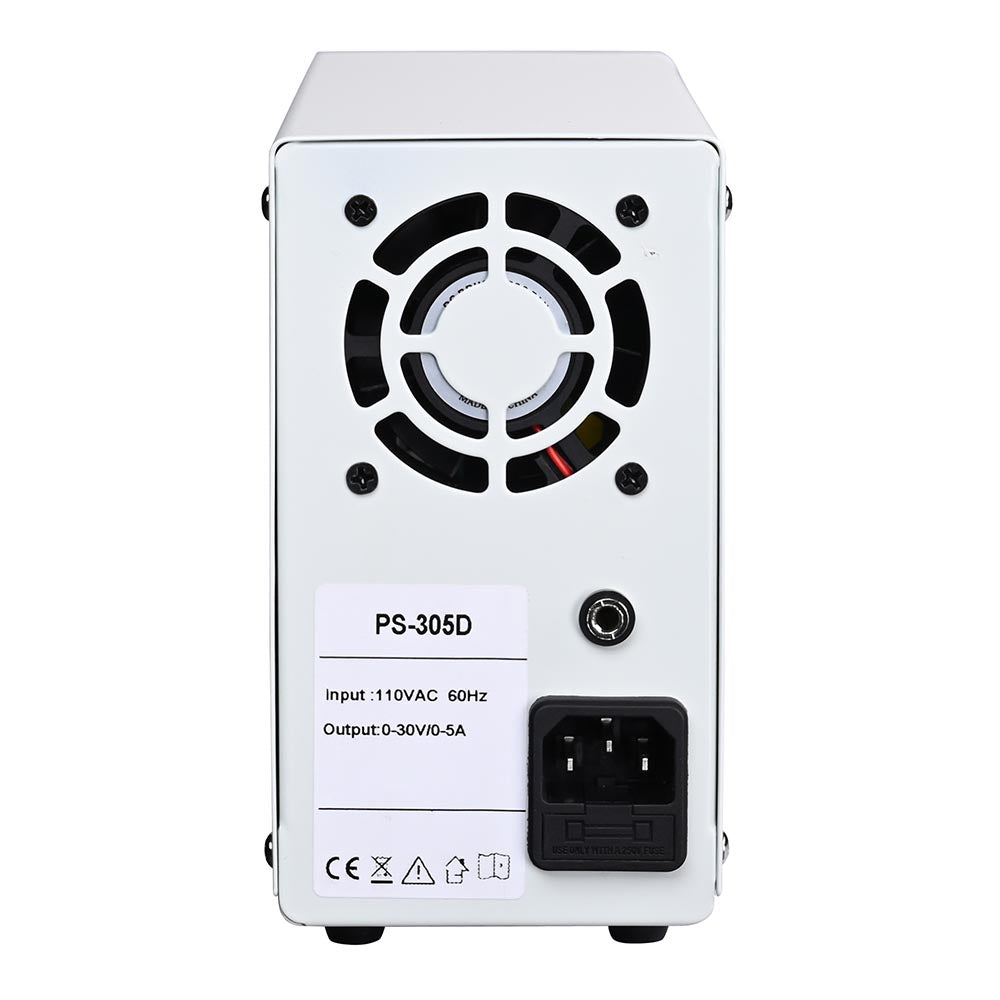

- Input voltage: 110V±10% 60Hz
- Output voltage: DC 0-30V Continuous adjustable
- Output current: DC 0-5A Continuous adjustable
- Display resolution: voltage: 0.1V, current: 0.1A.
- Display precision: ±1% ±1digit
- Voltage stabilization: ≤0.05% +10mV
- Current stabilization: ≤0.1% +10mA
- Load stabilization: CV≤0.1% +1mV / CC≤0.1% +10mA
- Ripples and noises: CV≤10mV(RMS) / CC≤20mA(RMS)
- Working Temperature: -10°C ~ 40 °C (14℉~104℉) Relative Humidity:＜80%
- Storage Conditions: -20°C ~ 80 °C (-4℉~176℉) Relative humidity :＜80%

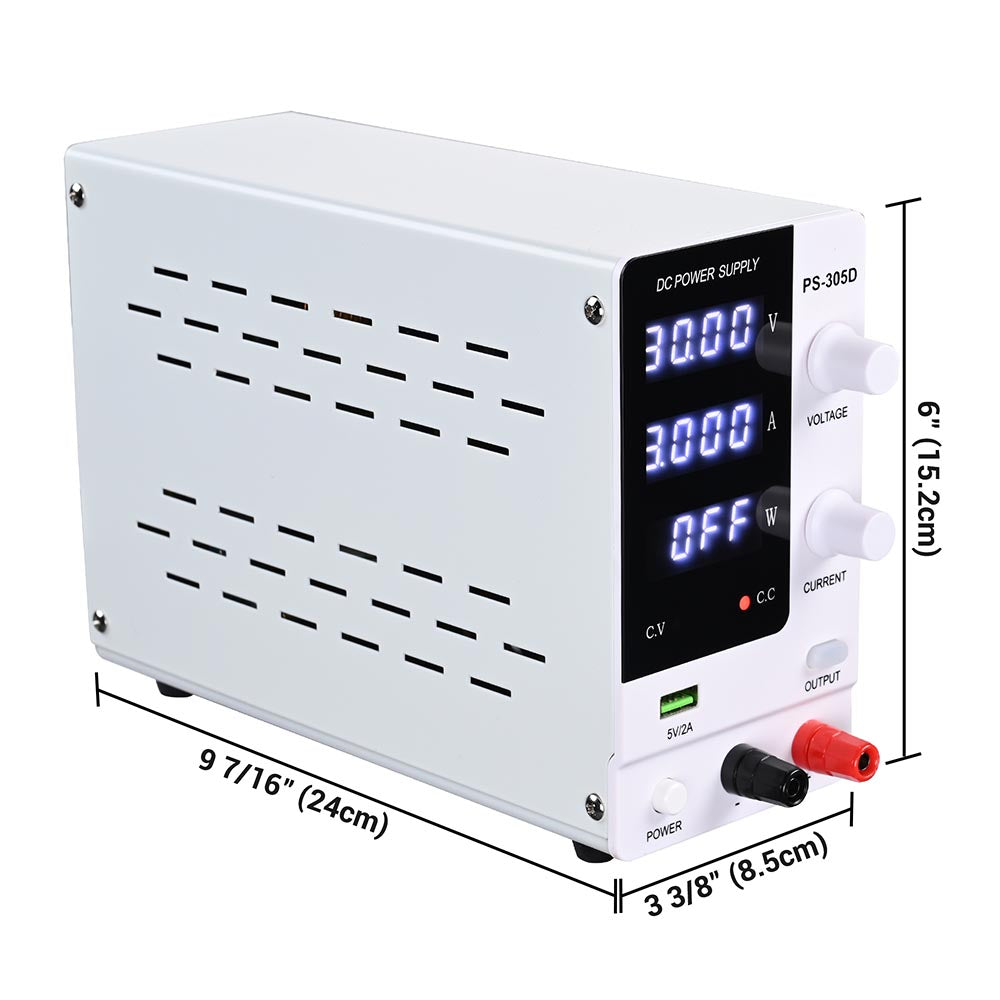

- Dimension: 13.8 x 6.1 x 5(inch)
Package Content:
- 1x DC Power Supply

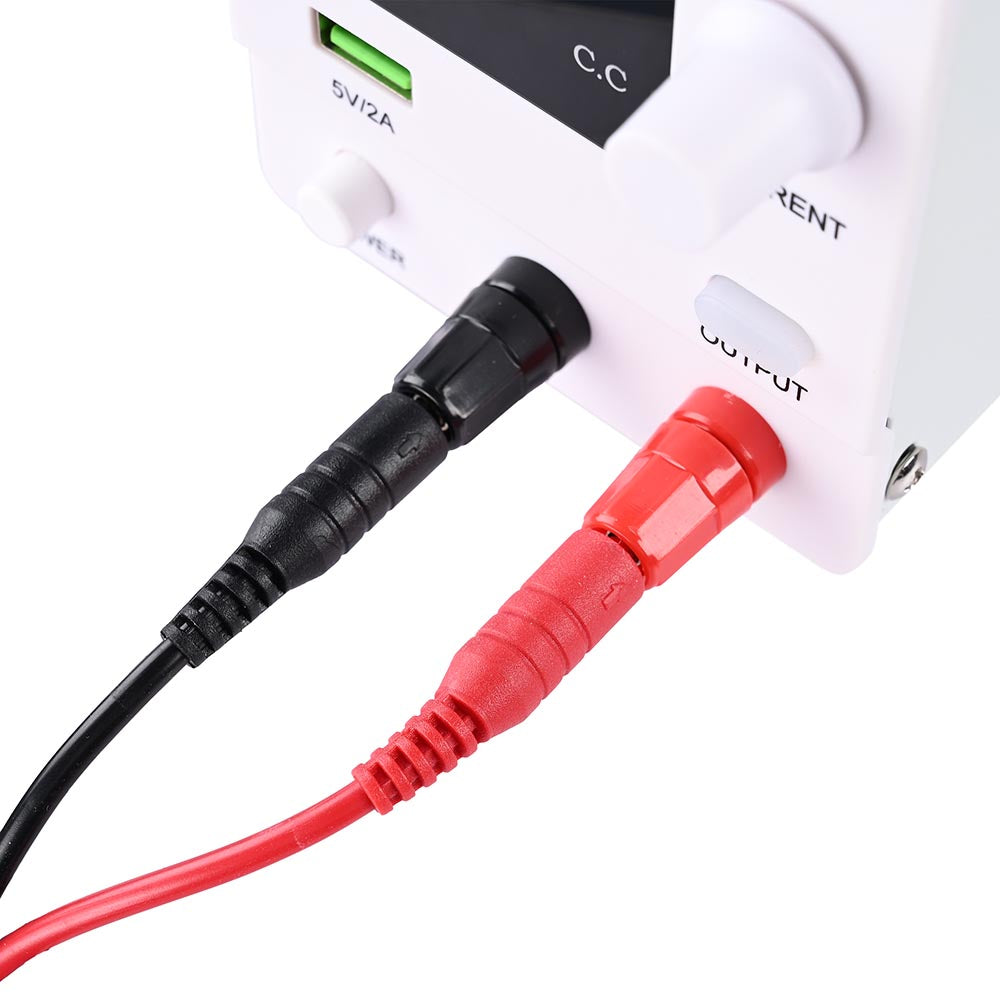

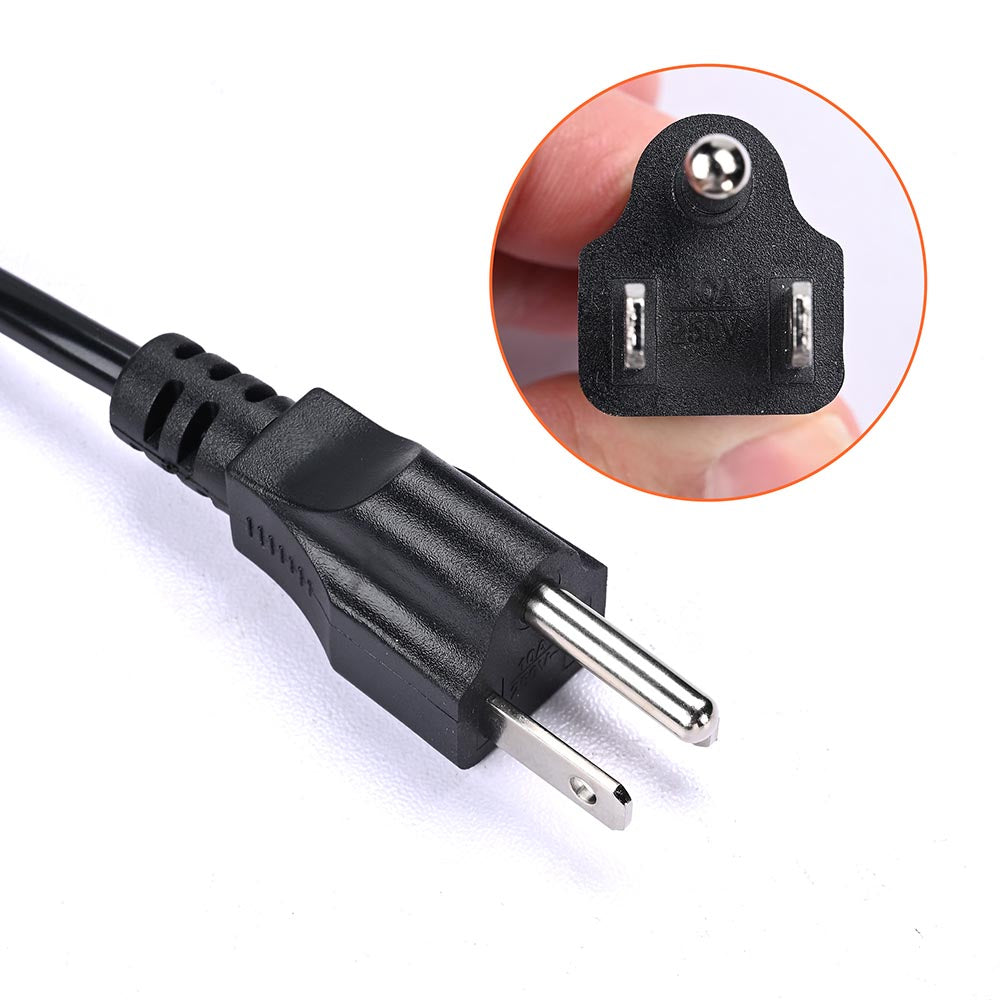

- 1x Cable
- 1x Manual
