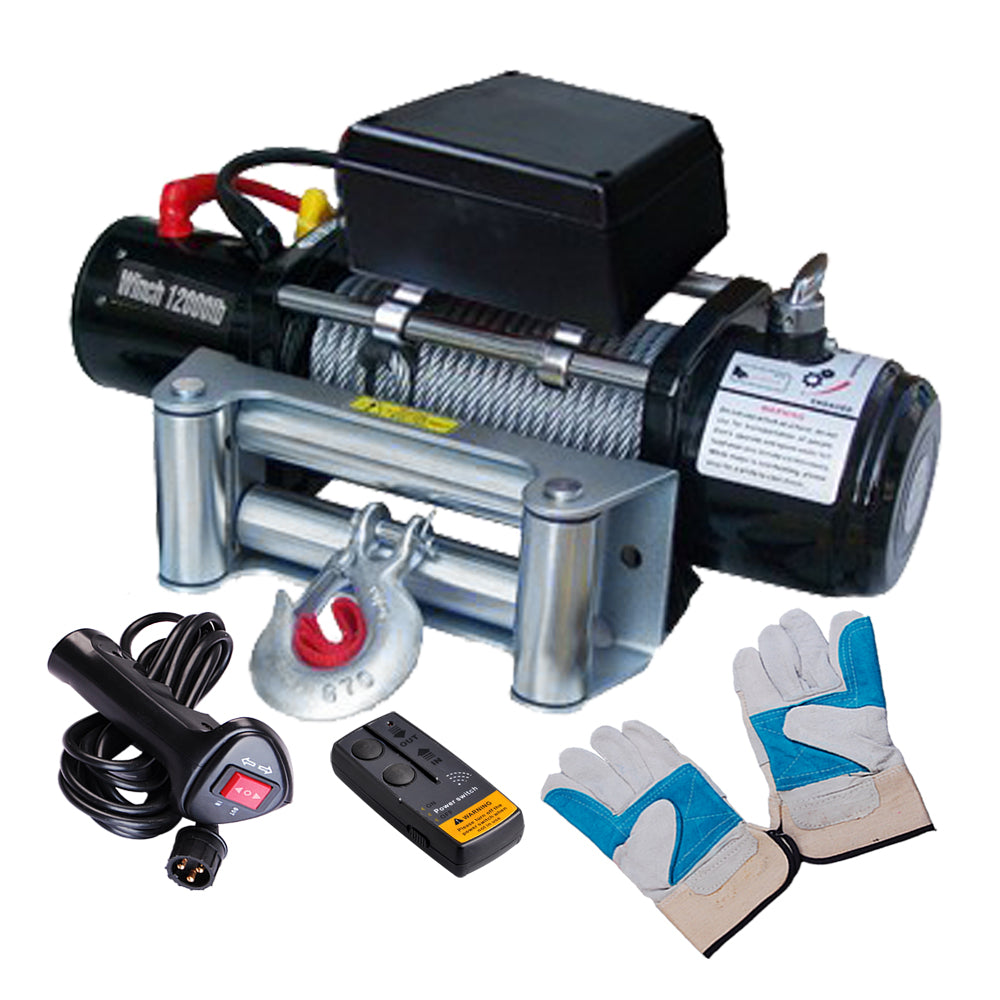

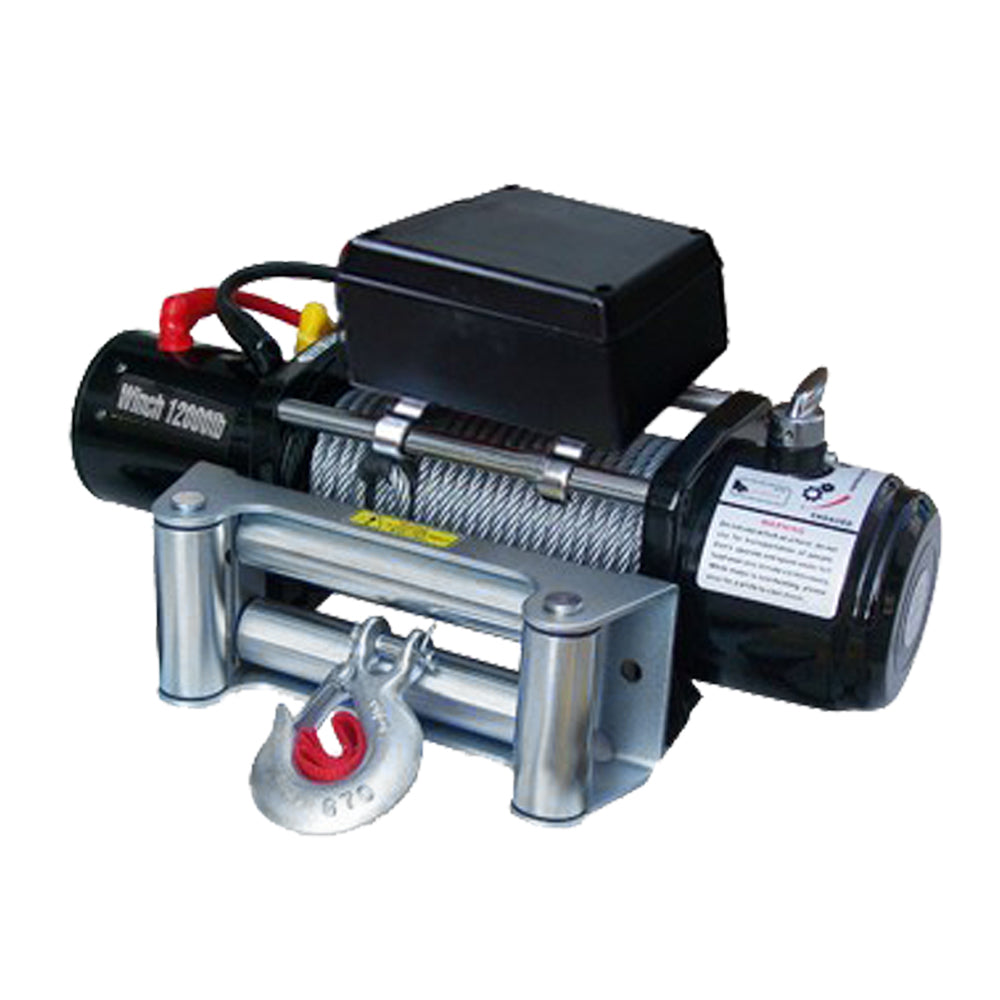

Industrial 12000 12v Remote Control Electric Winch

$ 392.99 $ 683.99
Quantity
SKU: YES1763
Options

This is an Electric Winch which is packed with the features you just want: Efficient Three-stage Planetary Gear Train, Automatic Braking Action, Handheld Corded Remote Switch, Free Spooling Clutch, Power IN and OUT, and a 4-Way Roller Fairlead etc. Powerful HorsePower, Extra Fast Speed, and Compact Design make this winch a must-have for recovery applications.

Features:

  • 12,000LB( single line rated pull )Electric Winch
  • Efficient Three-stage Planetary Gear Train helps to offer powerful horsepower
  • 4-Way Roller Fairlead to guide the rope onto the drum evenly

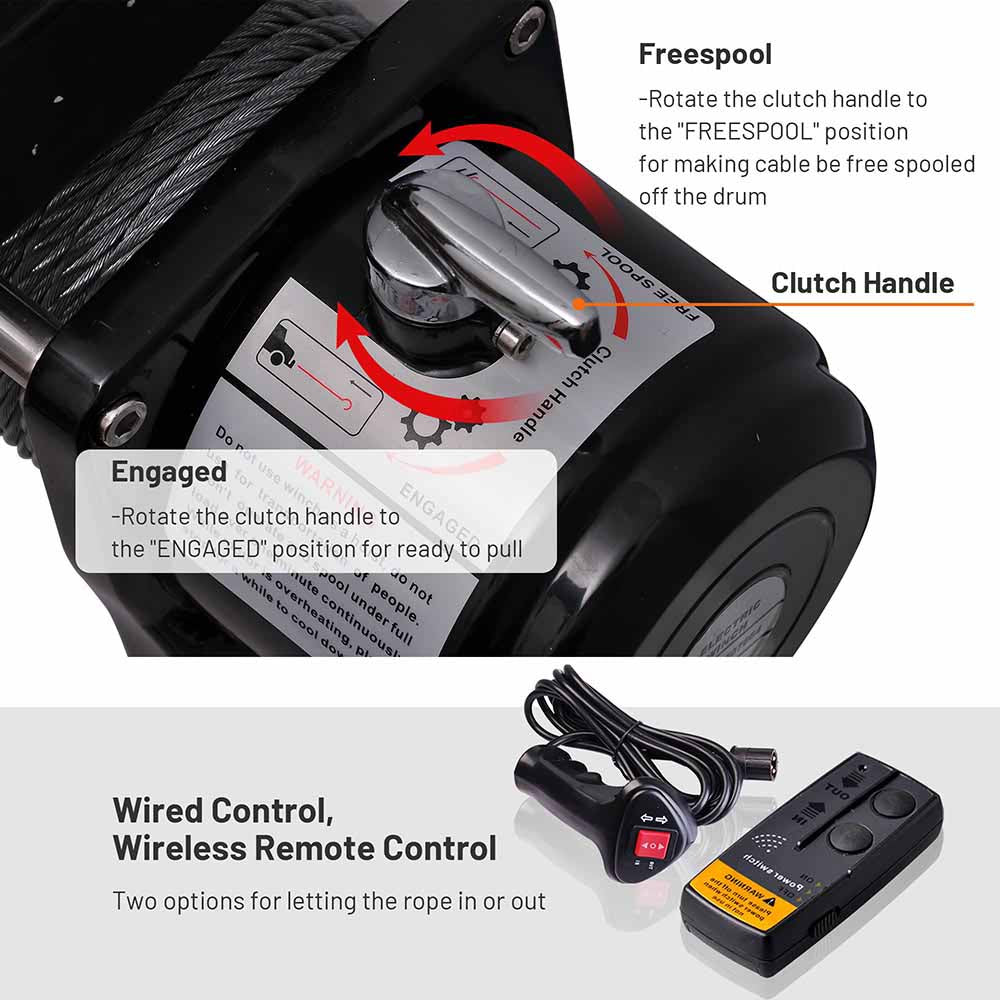

  • Free spooling clutch allows the wire rope to be pulled out without using electric power
  • Power IN and OUT through a remote switch with 12ft leads or Wireless Remote Control
  • Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch.
  • Extra protective casings for connectors, insuring safety and low wear-out.
  • Custom gaskets seal up critical inner components from water and debris infiltration

Specification:

Single line rated pull 12000LBS(5443kgs)
Motor 6.6hp/4.8kw (12V), Series Wound
Control Remote switch,12ft lead
Gear train 3 Stage Planetary
Gear reduction ratio 187.2:1
Clutch Sliding Ring Gear
Braking Action Two way braking action in the drum
Drum Size(Diam. x L) 2.5" x 8.8"
Cable(Diam. x L) 0.36" x92'
Fairlead 4-Way Roller Fairlead
Remote Control (Wired & Wireless) Optional
Remote Control Power Supply 12V 23A Battery (Not Included)
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge,72"
Finish Dark gray powder coat

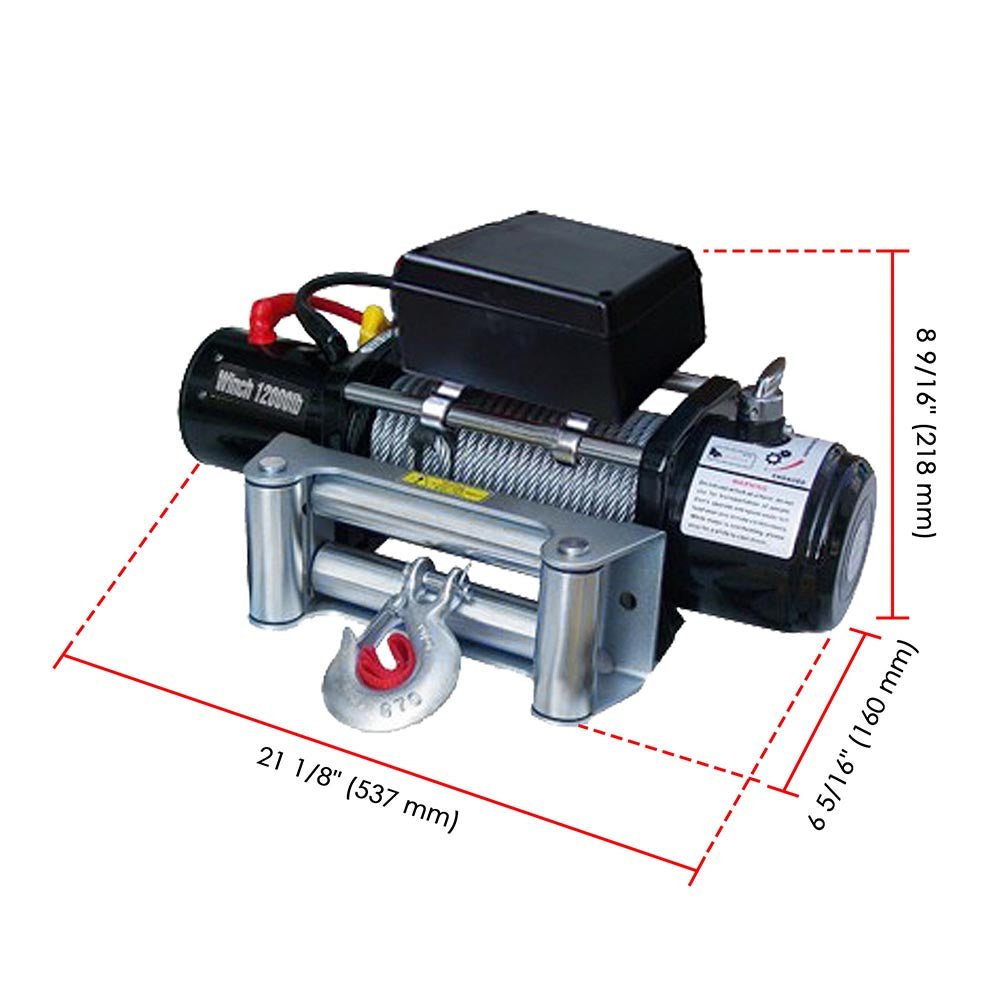

Overall Dimensions(L x W x H) 21.1"x6.3"x8.6"
Mounting Bolt Pattern(L x W) 10" x 4.5"
Weight 83.6lbs

Line speed and motor current (first layer):

Line Pull (lbs) Line Speed (FPM) Current (A)
0
33.3
85
4000
16.8
158
6000
12.8
231
8000
10.1
302
10000
8.8
371
12000
7.6
450

Line pull and Cable capacity:

layer of cable Rated Line Pull (lbs) Total Rope on Drum (ft)
1
12000
17
2
9210
41
3
8030
72
4
6894
99.5

Package Included:

  • 1 x 12000lb Winch
  • 1 x Wireless Remote Control Valued $29.99
  • 1 x Pair of Safety Gloves As Free Gift

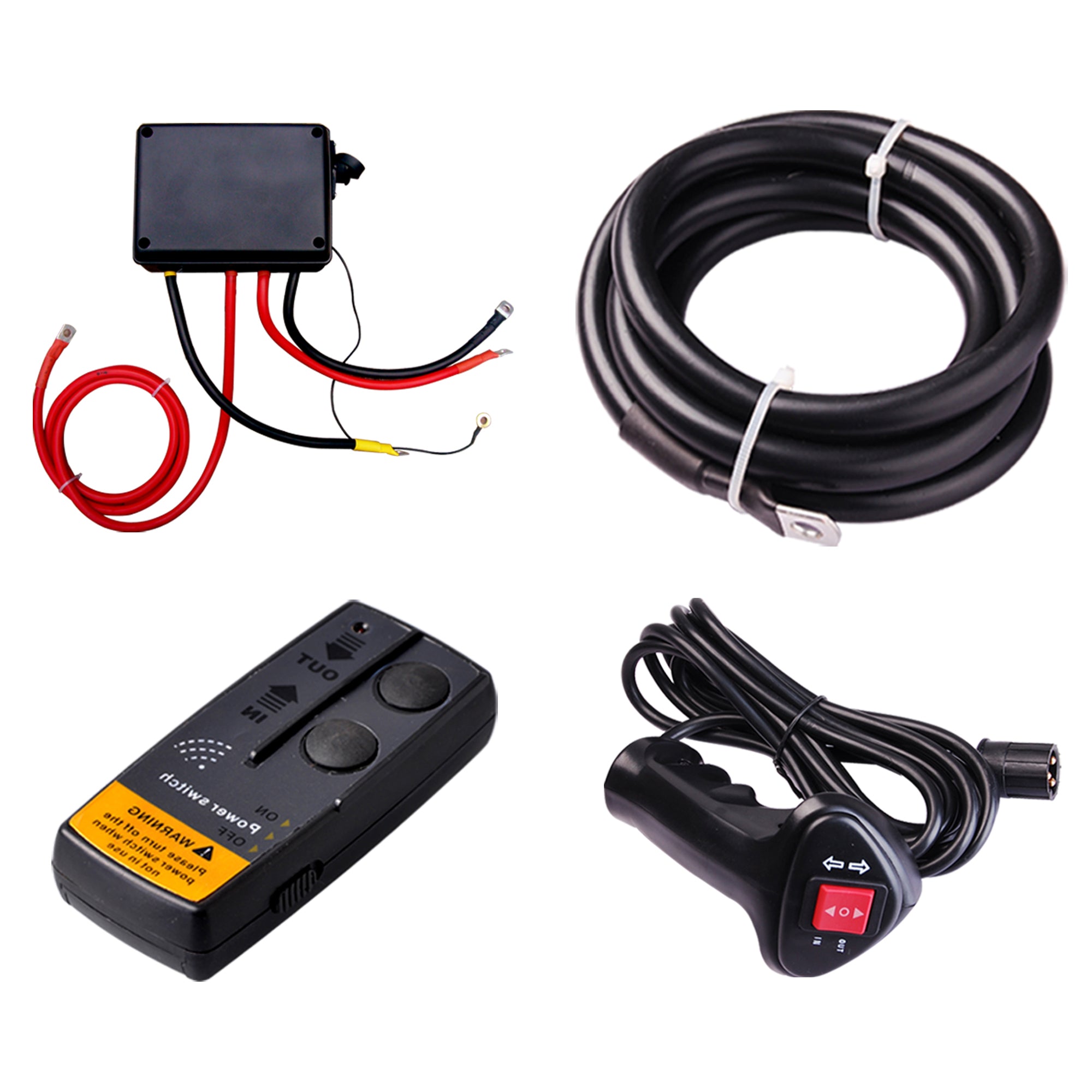

  • 1 x Solenoid Box Assembly
  • 1 x Roller Fairlead
  • 1 x Remote Switch with 12ft Cable
  • 1 x Hook
  • 1 x Safety Pull Strap
  • 1 x 72" Battery Leads
  • 1 x Users Manual
  • Some Fixing Accessories
  • Mounting plate is not included
  • Wireless remote control battery is not included

Please kindly notice that we do not include mounting plate in the package, you need a suitable winch mounting plate to hold your winch and fairlead before installing the winch onto your vehicle.(The type of mounting plate should refer to if your vehicle equipped with a fender guard or not.)

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is over heating, please stop for a while to cool down.
