Frequently Bought Together
Here we are offering a Professional 7-Piece and 3 HVLP Spray Guns Kit. Kit contains 1.8mm, 1.4mm and 1.0mm spray guns will allow you to spray a wide spectrum of coatings! This spray gun kit supplies low pressure through the air cap which makes the spraying softer, easily controlled and less overspray in high transfer efficiency. Ideals for basecoats, clearcoats, single stages and primers.
High Quality:

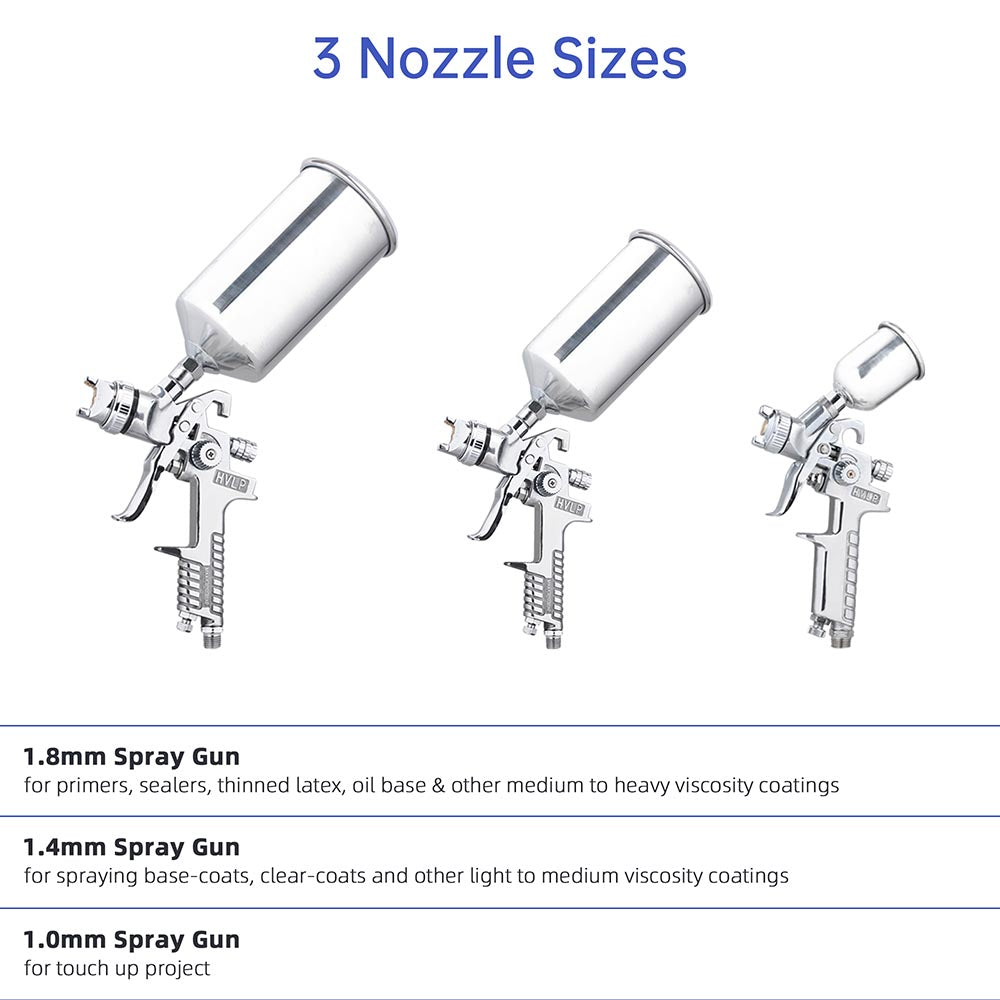

- 1.8mm spray gun for primers, sealers, thinned latex, oil base & other medium to heavy viscosity coatings
- 1.4mm spray gun for spraying light to medium viscosity coatings; 1.0mm spray gun for touch up project
- With pattern adjusting knob to spray pattern round when turning right and ellipse when turning left
- With gauge for accurate adjusting air pressure, turn the air adjustment value knob to control air value
- Paint adjusting knob for controlling fluid output volume by turning clockwise or counter-clockwise
Product Details:
| Spray Gun | Full Size Spray Guns | Mini Size Spray Gun | |
| Nozzle Size | 1.8 mm | 1.4 mm | 1.0 mm |
| Air Inlet | 1/4" | ||
| Type of Feed | Gravity | ||
| Recommended Air Pressure | 0-43 psi (0-2.9 bar) | 0-30 psi (0-2 bar) | |
| Max. Pressure of Air | 43 psi (2.9 bar) | 30 psi (2 bar) | |
| Paint Capacity | 1000 ml | 100 ml | |
| Average Air Consumption | 5 to 10 CFM | 1 to 5 CFM | |
| Pattern Width | 6.3"-9.4" (160-240mm) | 3.1"-3.9" (80-100 mm) | |
| Operating Pressure | 87 - 116 psi | ||
- Full Size Spray Guns Overall Dimension(LxWxH): 14 3/16" x 5 1/2" x 3 15/16" (36 x 14 x 10 cm)
- Mini Size Spray Guns Overall Dimension(LxWxH): 9 7/16" x 3 15/16" x 2 5/8" (24 x 10 x 6.7 cm)

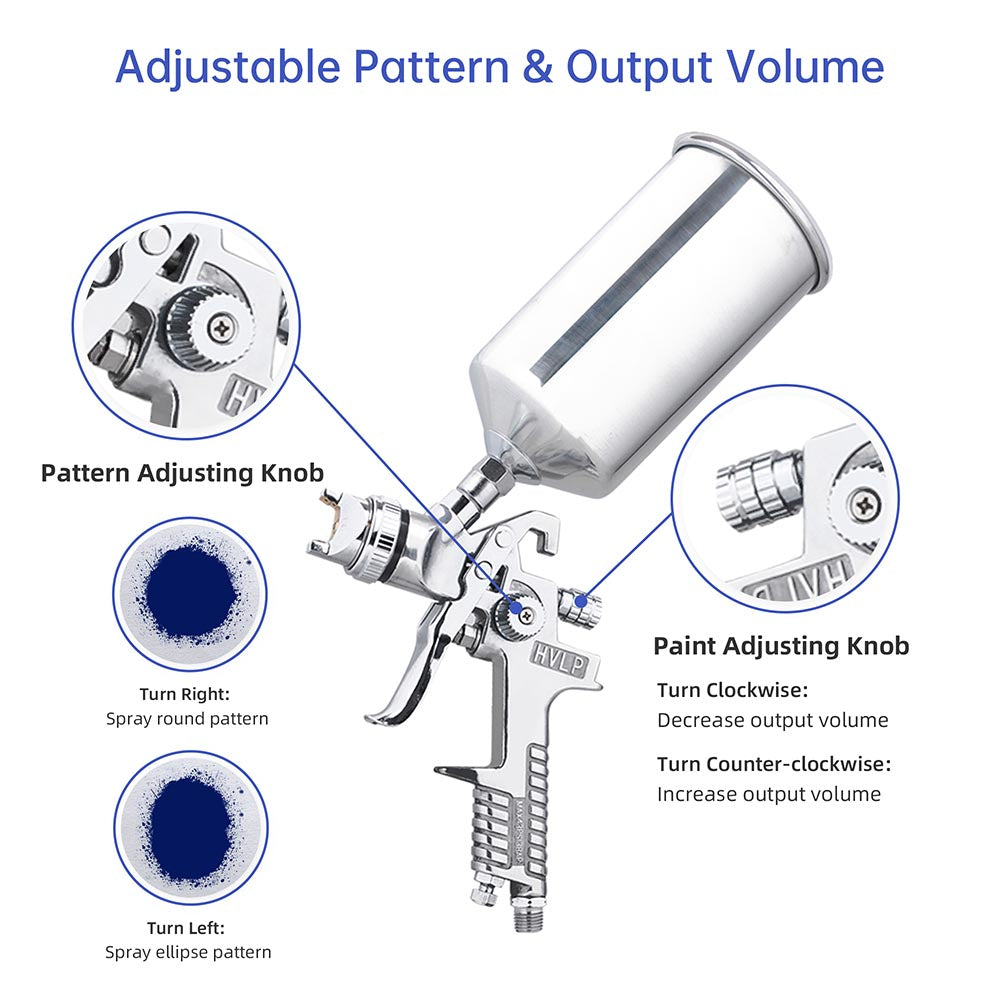

Fine Adjustment:
The desired pattern and fine atomization can be easily obtained by regulating the Pattern Adjusting Knob and Fluid Adjusting Knob.
- Pattern Adjustment: Turn the Pattern Adjusting Knob to the right until tight will make spray pattern round, or turn left make spray pattern ellipse.
- Fluid Adjustment: Turn the Fluid Adjusting Knob clockwise will decrease the volume of fluid output and counter-clockwise will increase fluid output.

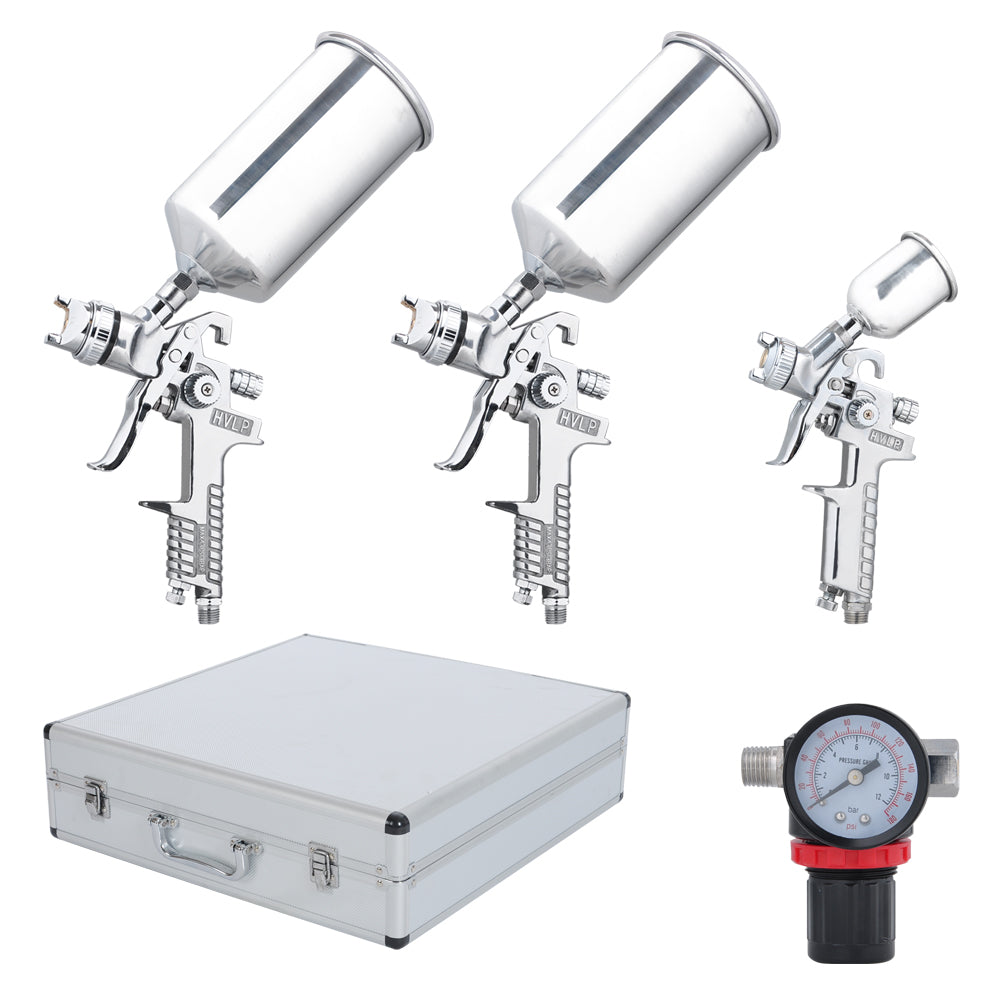

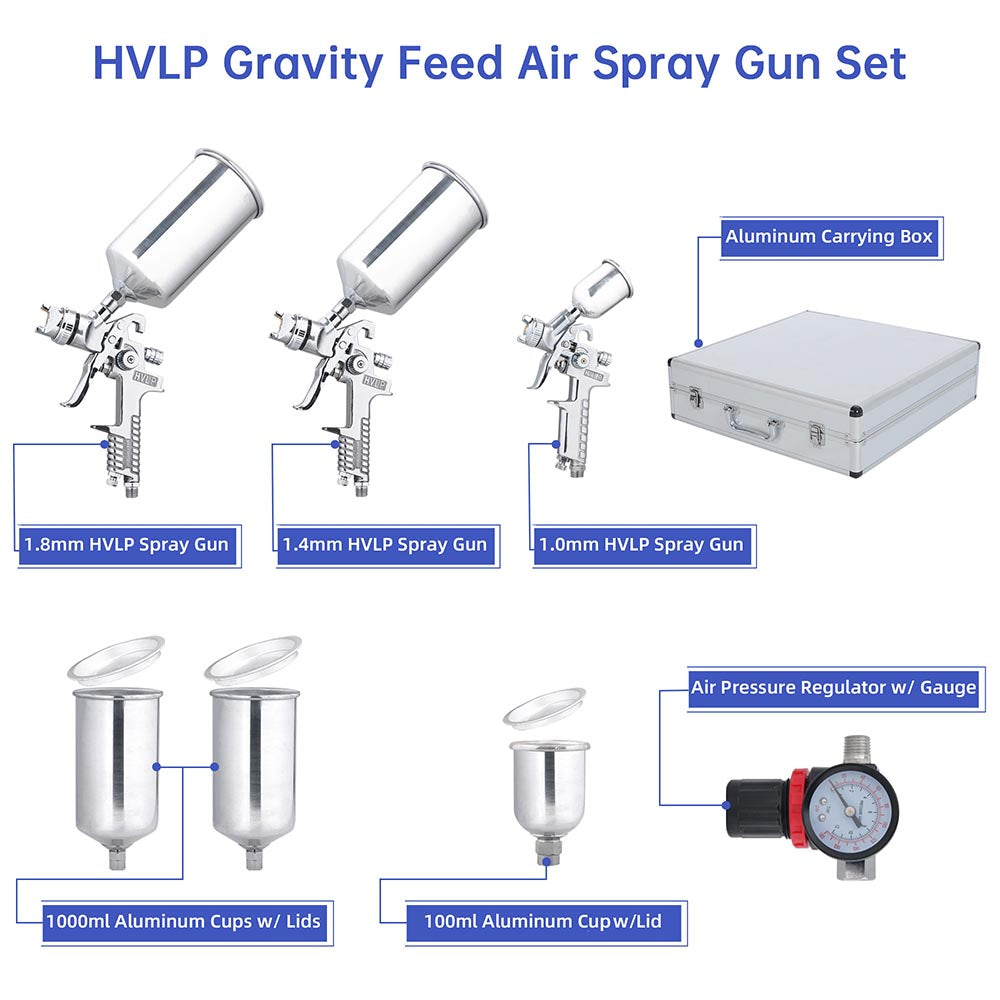

- 1x 1.8mm HVLP Spray Gun
- 1x 1.4mm HVLP Spray Gun
- 1x 1.0mm HVLP Spray Gun
- 2x 1000ml Aluminum Cups w/ Lids
- 1x 100ml Aluminum Cup w/ Lid
- 1x Air Pressure Regulator w/ Gauge

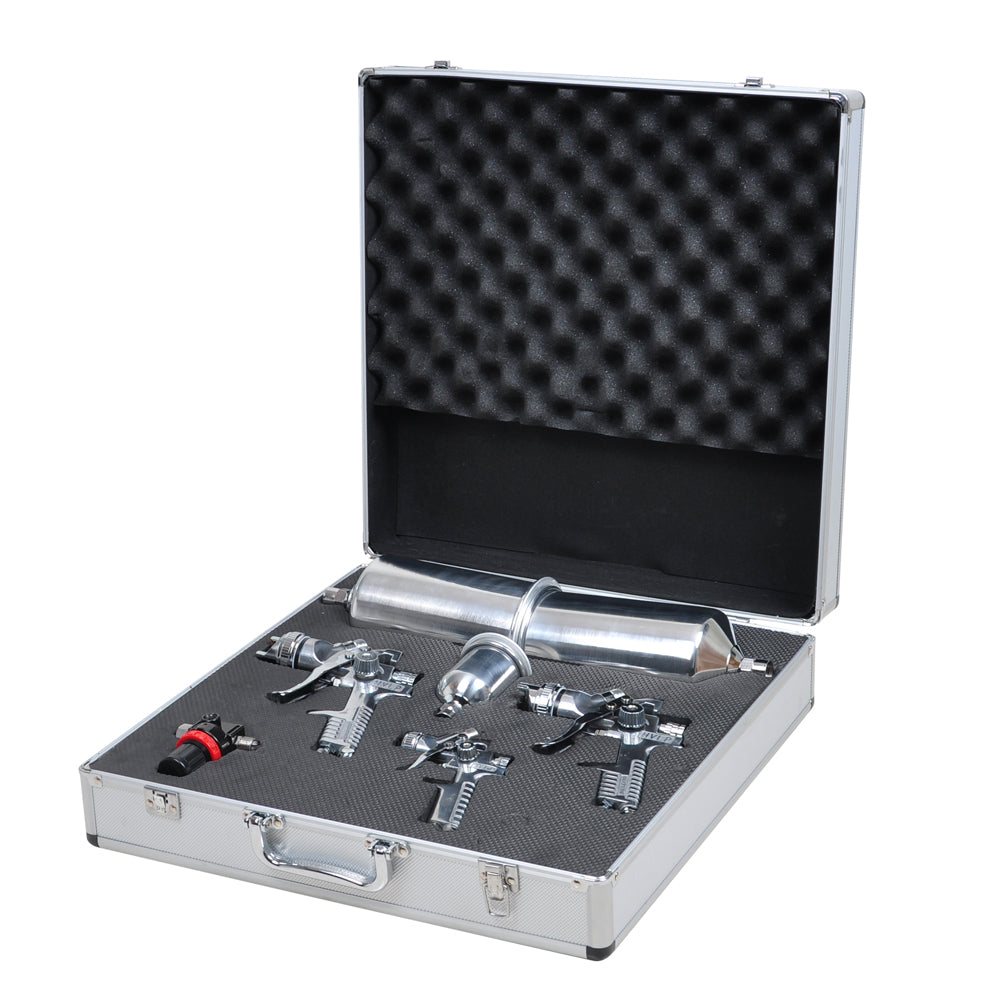

- 1x Aluminum Carrying Box
- 1x Manual
